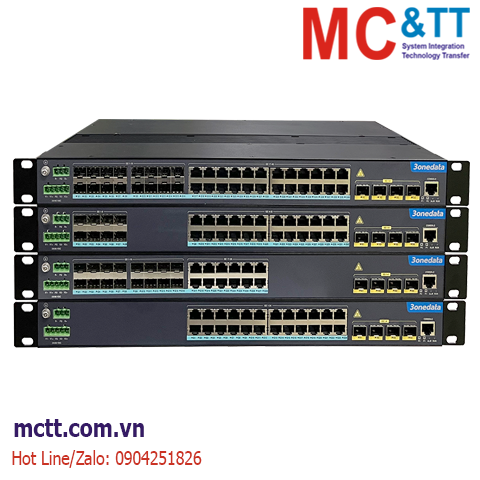

Switch công nghiệp quản lý Layer 3 với 24 cổng Gigabit Ethernet + 16 cổng Gb SFP + 4 cổng 10Gb SFP+ 3Onedata ICS5400-24GT16GS4XS-2LV
ICS5400 series are 28/32/36/44-port Gigabit /10Gigabit layer 3 industrial Ethernet switches. Provide Gigabit copper port, Gigabit SFP slot, 10Gigabit SFP+ slot, which can negotiate the port rate and duplex mode with the device at the opposite end through self-negotiation. Support 12~55VDC or 85~264VAC power supply scheme, and adopt rack installation mode, which can meet the requirements of different application sites.
The network management system supports a variety of network protocols and industry standards, such as IPv6, PTP, OSPF, PIM, VRRP, ISIS, NAT, Ring, MRP, STP/RSTP/MSTP, ERPS, VLAN, IGMP/MLD, IGMP/MLD Snooping, DHCP Server/Relay, LLDP, LACP, port mirroring. It possesses complete management functions and supports SNMP centralized management, port statistics, storm suppression, network diagnosis, online upgrade, etc. CLI, HTTP, HTTPS, TELNET, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, which has passed rigorous industrial standard tests, and suits the industrial scene environment with harsh requirements for EMC. It can be widely used in railway transportation, smart mining, smart city, new energy, smart grid, intelligent manufacturing smart medical care, petroleum and petrochemical industry and other industrial fields.
Tính năng
- Up to 24 Gigabit copper ports, 16 Gigabit SFP slots, 4 10Gigabit SFP+ slots
- Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- Support multiple network protocols and industry standards, such as Ipv6, RIP, OSPF, PIM, VRRP, ISIS, NAT, MRP, STP/RSTP/MSTP, ERPS, VLAN, IGMP/MLD, IGMP/MLD Snooping, DHCP Server/Relay, LLDP, LACP
- Optional DC (12~55VDC) or AC (85~264VAC) dual power supply, support dual power supply redundancy
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GBase-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP |
|
Management |
SNMP v1/v2c/v3 centralized managed equipment, Port Mirroring, LLDP, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server |
|
Security |
User privilege classification, SSH/HTTPS protocol authorization, link flap protection, port loop detection, IPDT, IPv6DT, Smart-Link, NAT, port alarm and power alarm. |
|
Switch Function |
802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression |
|
Unicast/ Multicast |
IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM |
|
Redundancy Technology |
Ring, MRP, STP/RSTP/MSTP, ERPS |
|
Routing Technique |
RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP |
|
Troubleshooting |
Ping, Traceroute, DDMI |
|
Time Management |
NTP Client Configuration, Time Zone Configuration |
|
Interface |
Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning
Gigabit SFP Slot : 100/1000Base-X self-adaption or forced mode, SFP slot
10Gigabit SFP+ slot: 1G/2.5G/10G Base-X self-adaption or forced mode, SFP+ slot
Console port: CLI command line management port(RS-232), RJ45
Alarm port: support 1 relay alarm output, using 3-pin 5.08mm pitch terminal blocks, and the current load capacity is 1A@30VDC or 0.3A@125VAC |
|
Indicator |
Power indicator, running indicator, alarm indicator, interface indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 32K
Buffer: 32Mbit
Backplane bandwidth: 160G
Switch delay: <10μs |
|
Power Supply |
DC device:
Input voltage: 24VDC/48VDC (12~55VDC)
lPower supply quantity: dual power supply redundancy
Connection mode: 5-pin 5.08mm pitch terminal blocks
Connection protection: anti-reverse connection
AC device:
Input voltage: 110VAC/220VAC (85~264VAC)
Power supply quantity: dual power supply redundancy
Connection mode: AC socket with switch |
|
Power Consumption |
＜47.3W |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95%(no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, metal
Installation: 1U rack mounting
Dimension (W x H x D): 441.6mm×44.45mm×290mm (lugs are not included) |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Contact discharge: ±6kV
Air discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Copper port: ±2kV
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Copper port: ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
|
Warranty |
3 years |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
|
Available Models |
Gigabit Copper Port |
Gigabit SFP |
10Gigabit SFP+ |
Power Supply |
|
ICS5400-24GT4XS-2LV |
24 |
— |
4 |
12~55VDC
Dual power supply redundancy |
|
ICS5400-12GT16GS4XS-2LV |
12 |
16 |
4 |
|
ICS5400-24GT8GS4XS-2LV |
24 |
8 |
4 |
|
ICS5400-24GT16GS4XS-2LV |
24 |
16 |
4 |
|
ICS5400-24GT4XS-2HV |
24 |
— |
4 |
85~264VAC
Dual power supply redundancy |
|
ICS5400-12GT16GS4XS-2HV |
12 |
16 |
4 |
|
ICS5400-24GT8GS4XS-2HV |
24 |
8 |
4 |
|
ICS5400-24GT16GS4XS-2HV |
24 |
16 |
4 |
