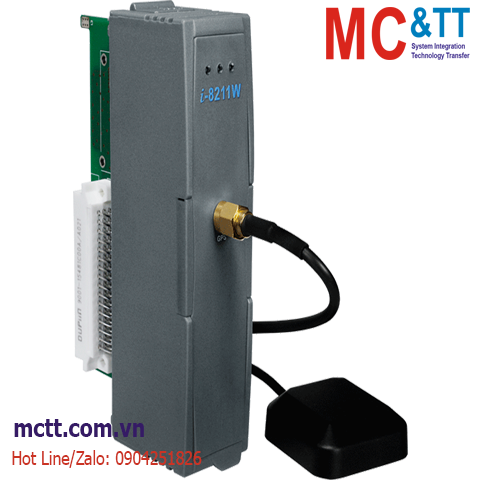

Module đồng bộ tín hiệu GPS GLONASS ICP DAS I-8211W-G CR
Feature
- Time synchronization, error under 1 millisecond
- Support GPS, GLONASS
- Capable of SBAS (WAAS, EGNOS, MSAS)
- Plug and Play in LinPAC (LX-8x31, LP-8x21) series
Introduction
I-8211W-G is a GPS, GLONASS receiver module designed to use GPS, GLONASS satellite time for automatic and precise time synchronization. The I-8211W-G can be plugged into any slot of the LinPAC, the LinPAC will automatically launch the application and acquire GPS, GLONASS time to reduce RTC drift to 1ms. The I-8211W is preset to receive GPS signals, you can modify the LinPAC settings to receive GLONASS signals.
PS: LinPAC with NTPD package: LP-8x21, LX-8x31
Application
- Satellite time correction
- Precise timekeeping and time measurement
Specifications
| LED Indicators |
| Status |
1 x Power
1 x GPS/GNSS |
| GPS/GNSS |
| Acquisition Time |
Cold Start (Open Sky)=42 s (typical) |
| Frequency |
L1 1575.42 MHz, C/A code |
| Max. Altitude |
<18,000 m |
| Max. Velocity |
<515 m/s |
| Position Accuracy |
Capable of SBAS (WAAS, EGNOS, MSAS) |
| Protocol |
NMEA 0183 version 3.01 |
| Sensitivity |
Tracking: Up to -158 dBm
Cold start: Up to -142 dBm |
| Support Channels |
32 |
| Power |
| Consumption |
0.75 W (Max.) |
| Mechanical |
| Dimensions (mm) |
32 x 87 x 114 (W x L x D) |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +85°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8211W-G CR |
Time Sync Module, using GPS, GLONASS (RoHS) (Asia Only)
Includes a 5 m antenna (ANT-115-03-2) |
