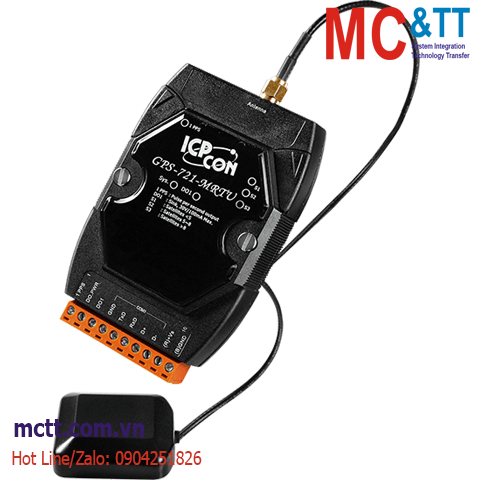

Module thu tín hiệu GPS + RS-232 NEMA & RS-485 Modbus RTU ICP DAS GPS-721U-MRTU-UTA CR
Feature
- Support 56-channel GPS and NMEA v0183 (Baudrate 9600 bps)
- RS-485 supports DCON protocol and Modbus RTU
- RS-232 supports NMEA v0183 format, DCON or Modbus RTU protocol
- Built-in 1 channel DO, 1 channel PPS(1 pulse per second), 1 RS-485 port, 1 RS-232 port
- PPS: 100 ms pulse output/sec for precise timekeeping and time measurement
- 10 ~ 30 VDC – (Power reverse polarity protection)
- With various system LED indicators
- DIN Rail design
Introduction
The GPS-721U-MRTU-UTA, a new GPS solution for Remote GPS Receiver module in ICP DAS, featuring high sensitivity, low power consumption and ultra small form factor with DCON, Modbus RTU and GPS protocols. This powerful item provides you with superior sensitivity and outstanding performance even in the harshest environment.The GPS-721U-MRTU-UTA provides extra 1 channel DO and 1 channel PPS for users PPS signals can be used for precise timekeeping and time measurement. One can combine the PPS functionality with another as time synchronization source. Therefore, the GPS-721U-MRTU-UTA can be a powerful GPS remote module as well as a general purpose GPS module with RS232 interface. It can also be applied in Automotive navigation, Personal positioning and navigation, Marine navigation, Satellite time correction and etc…
Application
- Automotive navigation
- Personal positioning and navigation
- Marine navigation
- Satellite time correction
- Precise timekeeping and time measurement
Specifications
| LED Indicators |
| Status |
1 x Power/Communication
3 x GPS |
| GPS/GNSS |
| Acquisition Time |
Cold Start (Open Sky) = 29 s (typical) |
| Chip |
u-Blox solution |
| Frequency |
L1 1575.42 MHz, C/A code |
| Max. Altitude |
<50,000 m |
| Max. Velocity |
<500 m/s |
| Position Accuracy |
Autonomous: 2.5 m
SBAS: 2.0 m |
| Protocol |
NMEA 0183 (9600 bps, N81 Fixed) |
| Sensitivity |
Tracking: Up to -161 dBm
Cold start: Up to -148 dBm |
| Support Channels |
56 |
| 1 PPS |
Pulse per second output (Default 100 ms pulse/sec) |
| Digital Output |
| Channels |
1 (Sink) |
| Type |
Non-isolated Open Collector |
| Load Voltage |
+5 VDC~ +30 VDC |
| Load Current |
100 mA |
| COM Ports |
| Ports |
1x RS-232, 1x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N81, N82, E81, O81 |
| Protocol |
RS-232: DCON, Modbus RTU or NMEA 0183 (9600bps,N81 fixed)
RS-485: DCON or Modbus RTU |
| Power |
| Input Range |
+10 VDC ~ +30 VDC (Non-regulated) |
| Consumption |
2.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 x 117 x 35 (W x L x D) |
| Weight |
200 g |
| Environment |
| Operating Temperature |
-40 ~ +75°C |
| Storage Temperature |
-40 ~ +80°C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GPS-721U-MRTU-UTA CR |
GPS Receiver Module with RS-485, supports NEMA, DCON and Modbus/RTU protocols (for -40 ℃ application) (RoHS)
Includes a 5 m GPS antenna (ANT-115-03) |
