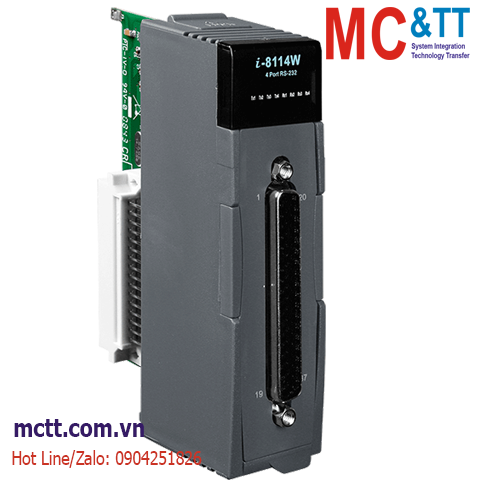

Module 4 cổng RS-232 ICP DAS I-8114W-G CR
Feature
• Serial Port with +/-4 kV ESD Protection
• Baud Rate of up to 115200 bps
• Internal 128-byte Hardware FIFO for each Port
• LED Indicators for TxD, RxD and Power Status
Introduction
The I-8114W-G provides 4 non-isolated RS-232 serial ports, It is equipped with a 128-byte hardware FIFO for each port and offers speeds up to 115.2 kbps with support for full-duplex communication. In the harsh industrial environment, the onboard ESD protection devices can divert this potentially damaging charge away from sensitive circuitry and protect the I-8114W from permanent damage. The serial communication modules are designed for use with intelligent devices like bar code readers, serial printers, intelligent sensors, instrumentation equipment, computers, and almost any device with an RS-232 port.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
4 x COM Ports |
| COM Ports |
| Ports |
4 x RS-232 |
| Baud Rate |
115200 bps Max. |
| Parity |
None, Even, Odd, Mark, Space |
| Data Bit |
5, 6, 7, 8 |
| Stop Bit |
1, 1.5, 2 |
| FIFO Size |
Internal 128 bytes for each port |
| Power |
| Consumption |
1.25 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 114 x 85 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8114W-G CR |
4-port Non-isolated RS-232 Module (RoHS)
Includes CA-4002 (DB37 connector Male with plastic cover) |
