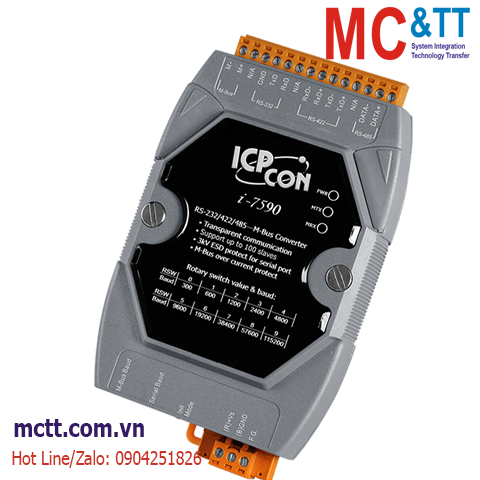

Bộ chuyển đổi RS-232/422/485 sang M-Bus ICP DAS I-7590 CR

Chia sẻ:
Mã sản phẩm: I-7590
Thương hiệu: ICP DAS
Tình trạng:

RS-232/RS-422 RS-485 to M-Bus Converter

Liên hệ
Mô tả

Bộ chuyển đổi RS-232/422/485 sang M-Bus ICP DAS I-7590 CR

Features

  • Serial Baud and M-Bus Baud can be configured separately
  • Provides 10 kinds of Baud for default, 6 kinds of Baud for user-defined
  • Supports up to 100 M-Bus slaves
  • Provides transparent communication
  • Watchdog inside
  • Allows updating firmware by the RS-232 port
  • Overcurrent and short-circuit protection on the M-Bus port
  • 3750 Vrms photocouple isolation on the M-Bus port
  • ±4 kV ESD to contact
  • Reverse polarity protection on power

Introduction

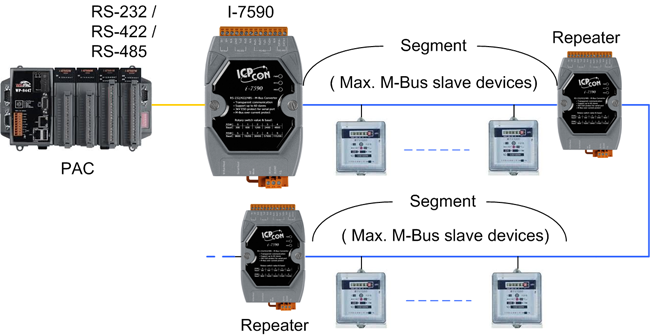

The I-7590 is specially designed for M-Bus slave device. It is a serial bus to M-Bus convertor. First, for serial bus, it offers RS-232, RS-422 and RS-485 three kinds of communication way. Second, the I-7590 has two rotary switches, one for serial port baud and the other for M-Bus port baud. Third, the I-7590 uses transparent transmission between serial bus and M-Bus communication. Through these three designs, it is easy to communicate with any standard M-Bus slave.

Applications

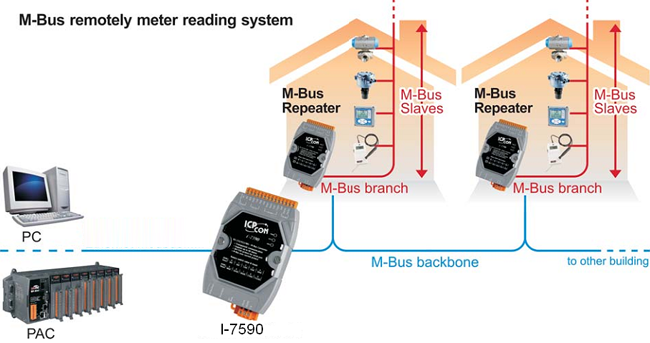

The M-Bus (Meter‐Bus) is a bus optimized for the reading of measurement instruments like: energy counters, hot and cold water counters, gas, pressure, sensors and actuators, etc….

Specifications



COM Ports
Ports 1 x RS-232/485/422, Non-isolated
Baud Rate 300 ~ 115200 bps
Parity None, Even, Odd, Mark, Space
Data Bit 5, 6, 7, 8
Stop Bit 1, 2
M-Bus
Ports 1
Baud Rate 300 ~ 2400 bps and user-defined baud rate
Data Bit 5, 6, 7, 8
Stop Bit 1, 2
Parity None, Even, Odd, Space, Mark
Isolation 3750 Vrms for photo-couple
Current Protection short-circuit protection
Power
Consumption 1.8 W @ 24 VDC (with 1 slave device), 11.8 W @ 24 VDC (with 100 slave devices)
Mechanical
Dimensions (mm) 72 x 120 x 36 (W x H x D)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7590     CR  RS-232 / RS-422 / RS-485 to M-Bus Converter (RoHS)
