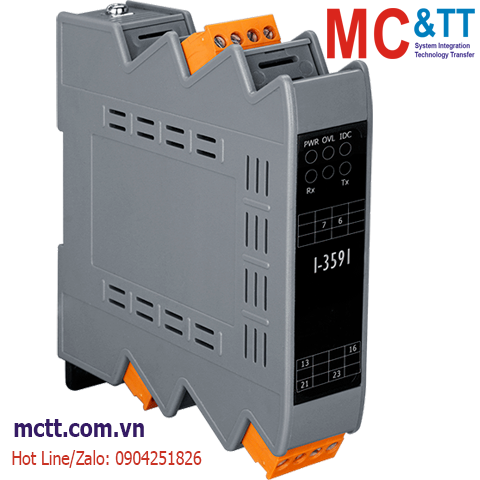

Bộ lặp tín hiệu M-Bus ICP DAS I-3591 CR
Features
- Supports M-Bus physical layer
- Supports drive up to 100 M-Bus slaves
- Auto M-Bus baud rate
- M-Bus distance is extended by 1200 meters (at 2400 bps)
- M-Bus overloading alarm
- Overcurrent and short-circuit protection on the M-Bus port
- Reverse polarity protection on power
Introduction
M-Bus (Meter-Bus) is a communication interface widely used in various meters, such as electricity meters, water meters, heat meters, etc. It is easy to install (two-wire system includes power and communication function) and robustness are the most important features. I-3591 is the M-Bus repeater developed by ICP DAS, its main function is to strengthen the driving ability of M-Bus, extend the communication distance of M-Bus, reshape the signal waveform, etc. Provide the M-Bus master with better communication capabilities. I-3591 does not require any settings, it can be used directly after connecting to the line, and easy to use is also one of the main features of I-3591.
Applications
Specifications
| M-Bus |
| Ports |
1 Master Port, 1 Slave Port |
| Baud Rate |
Auto-adjust |
| Isolation |
3750 Vrms for photo-couple |
| Current Protection |
short-circuit protection |
| Power |
| Consumption |
1.6 W @ 24 VDC (with 1 slave device), 9.7 W @ 24 VDC (with 100 slave devices) |
| Mechanical |
| Dimensions (mm) |
25 x 116 x 120 (W x H x D) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-3591 CR |
M-Bus Repeater (RoHs) |
