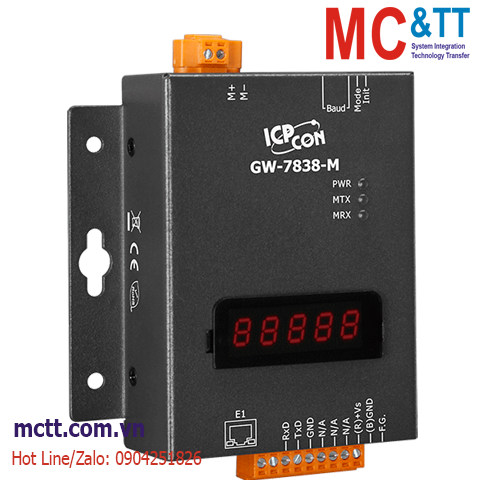

Bộ chuyển đổi cổng Modbus TCP Server sang M-Bus Master ICP DAS GW-7838-M CR

Mã sản phẩm: GW-7838-M CR
Thương hiệu: ICP DAS
Tình trạng:

Modbus TCP server to M-Bus master gateway

Liên hệ
Mô tả

Bộ chuyển đổi cổng Modbus TCP Server sang M-Bus Master ICP DAS GW-7838-M CR

Features

  • Supports M-Bus standard: EN-13757, CJ/T -188
  • Supports Modbus TCP/RTU function code 0x03 and 0x04 to read Meter data
  • Default M-Bus port data format: Data bit 8, Parity Even, Stop bit 1
  • Supports up to 100 M-Bus slaves
  • M-Bus over current protection
  • Short-circuit protection on the M-Bus
  • Update firmware from serial port
  • Watchdog inside

Introduction

M-Bus (Meter-Bus) is a communication interface widely used in various meters, such as electricity meters, water meters, heat meters, etc. Ease of installation (two-wire system includes power and communication function) and robustness are the most important features. M-Bus has its own physical layer and protocol. Therefore, it is usually switched to other systems, such as Modbus, to facilitate the overall application.

In the field of automation, Modbus TCP is one of the most common communication standards. ICP DAS developed the gateway GW-7838-M for Modbus TCP to M-Bus, allows the direct transmission of meter data to a control system using Modbus TCP. The GW-7838-M supports operating up to 100 devices on the M-Bus. After an initial configuration by M-Bus utility, GW-7838-M will read out the meters data autonomously. The PLC or PC as a Modbus TCP client can access meter data via a TCP connection easily.

Applications

The M-Bus (Meter‐Bus) is a bus optimized for the reading of measurement instruments like: energy counters, hot and cold water counters, gas, pressure, sensors and actuators, etc.….

Specifications

COM Ports
Ports 1 x RS-232, Non-isolated
Baud Rate 300 ~ 115200 bps
Parity None, Even, Odd, Mark, Space
Data Bit 5, 6, 7, 8
Stop Bit 1, 2
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
Protocol Modbus TCP
M-Bus
Ports 1
Baud Rate 300 ~ 2400 bps and user-defined baud rate
Data Bit 5, 6, 7, 8
Stop Bit 1, 2
Parity None, Even, Odd, Space, Mark
Isolation 3750 Vrms for photo-couple
Current Protection short-circuit protection
Power
Consumption 1.8 W @ 24 VDC (with 1 slave device), 11.8 W @ 24 VDC (with 100 slave devices)
Mechanical
Dimensions (mm) 102 x 123 x 40 (W x H x D)
Installation Wall mounting
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GW-7838-M     CR  Modbus TCP Server to M-Bus Master Gateway (Metal Case)(RoHS)
