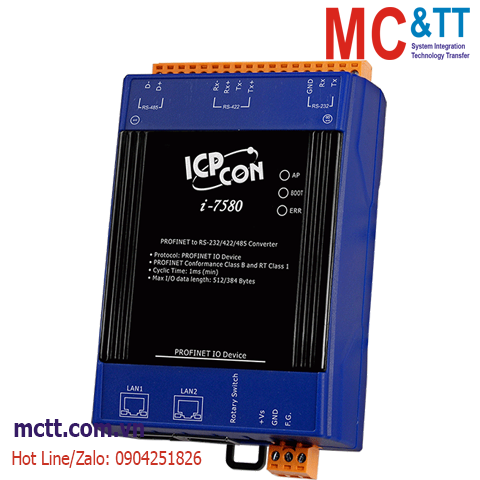

Bộ chuyển đổi PROFINET sang RS-232/422/485 ICP DAS I-7580 CR
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- Max length of input/output data is 512/384 Bytes
- 4 kV Contact ESD protection for any terminal
Introduction

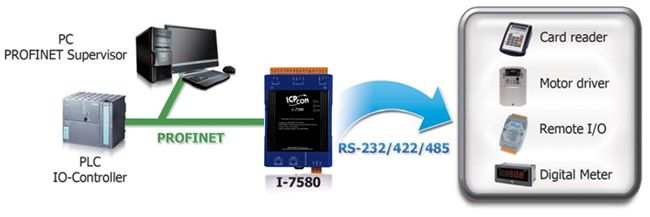

The I-7580 is a PROFINET IO device with RT functionality that supports RS-232, RS-422 and RS-485 serial interfaces. Users can choose one of these serial communication interfaces to apply. It is easy to allow users to take almost serial device to a PROFINET network including serial remote I/O devices, sensors, actuators, HMI, barcode readers and RFID, etc
Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
32-bit CPU Core |
| EEPROM |
8 KB |
| Flash |
4 MB |
| SRAM |
32 MB |
| Watchdog Timer |
CPU built-in |
| LED Indicators |
| Status |
AP LED, BOOT LED, ERR LED |
| COM Ports |
| Ports |
RS-232/RS-422/RS-485 (can't be used simultaneously)
3-pin screwed terminal block (RxD, TxD, GND)
4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
2-pin screwed terminal block (DATA+, DATA-) |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 |
| Parity |
None, Even, Odd |
| Data Bit |
7, 8 |
| Stop Bit |
1 |
| Ethernet |
| Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Protocol |
PROFINET IO Device |
| Mechanical |
| Dimensions (mm) |
42 x 76 x 119 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7580 CR |
PROFINET to RS-232/422/485 Converter (RoHS) |
