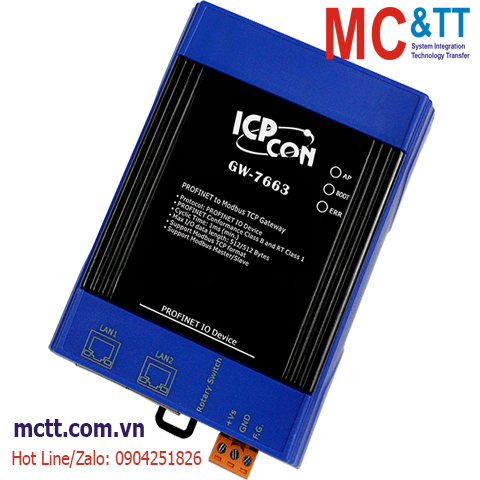

Bộ chuyển đổi PROFINET sang Modbus TCP ICP DAS GW-7663 CR

Chia sẻ:
Mã sản phẩm: GW-7663
Thương hiệu: ICP DAS
Tình trạng:

PROFINET to Modbus TCP Gateway

Liên hệ
Mô tả

Bộ chuyển đổi PROFINET sang Modbus TCP ICP DAS GW-7663 CR

Features

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • Max length of input/output data is 512/512 Bytes
  • Support Modbus Master and Slave mode
  • 4 kV Contact ESD protection for any terminal

Introduction

The GW-7663 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus TCP devices. These Modbus devices maybe a PLC, a sensor, ICPDAS I-8KE4-MCTP, ET-7000 series modules and so forth. We also provide a utility software for users to configure GW-7663. By using this module, users can put their Modbus devices into PROFINET network easily.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications



CPU Module
CPU 32-bit CPU Core
EEPROM 8 KB
Flash 4 MB
SRAM 32 MB
Watchdog Timer CPU built-in
LED Indicators
Status AP LED, BOOT LED, ERR LED
Ethernet
Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
PROFINET
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Protocol PROFINET IO Device
Power
Consumption 3.4 W
Mechanical
Dimensions (mm) 42 x 76 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GW-7663     CR  PROFINET to Modbus TCP Gateway (RoHS)
