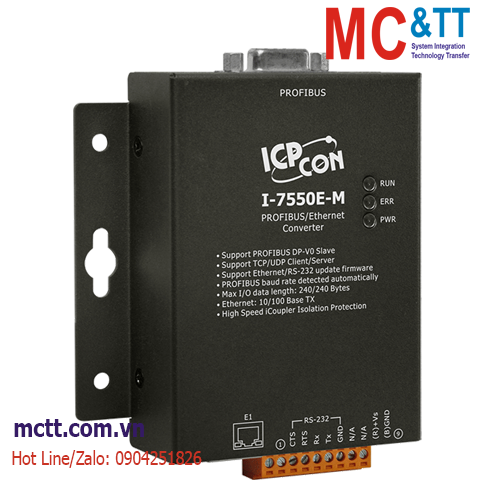

Bộ chuyển đổi Profibus sang Ethernet ICP DAS I-7550E-M CR

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • Address Setting : 0~126 set by DIP switch or EEPROM
  • Supports Ethernet Protocol : TCP/UDP Server/Client
  • Configuration : Web Configuration
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000 VDC on PROFIBUS side

Introduction

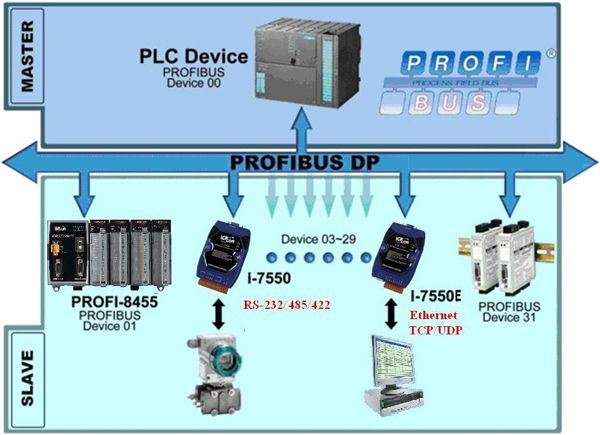

The I-7550E Converter is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access any kinds of Ethernet devices supporting TCP/UDP protocol. The I-7550E can be set as TCP/UDP server and client, it's flexible for user to match their requirement. In addition, the I-7550E module built-in web server, the user can set the module by web browser. By using this module, users can put their Ethernet devices into PROFIBUS network very easily.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 16 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC
CPU built-in
LED Indicators
Status PWR LED, RUN LED, ERR LED
COM Ports
Ports RS-232 (For updating firmware)
5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND )
Baud Rate 115200
Parity None
Data Bit 8
Stop Bit 1
Ethernet
Ports 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
PROFIBUS
Controller Profichip VPC3+C
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Mechanical
Dimensions (mm) 72 x 33 x 119 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +85 ℃
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7550E-M     CR  PROFIBUS to Ethernet Converter (Metal Case) (RoHS)
