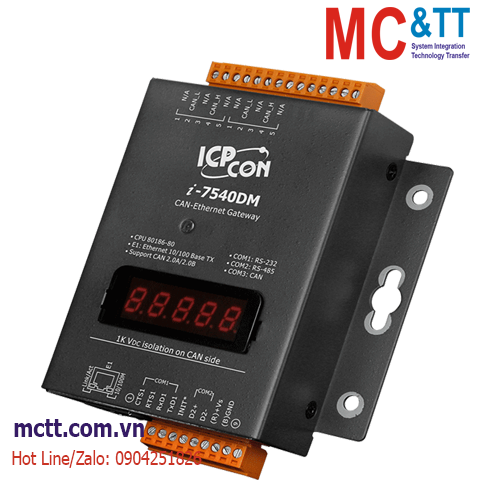

Bộ chuyển đổi CAN sang Ethernet ICP DAS I-7540DM CR

Chia sẻ:
Mã sản phẩm: I-7540DM
Thương hiệu: ICP DAS
Tình trạng:

CAN to Ethernet Gateway

Liên hệ
Mô tả

Bộ chuyển đổi CAN sang Ethernet ICP DAS I-7540DM CR

Feature

  • 80186-80 Embedded CPU, or compatible
  • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
  • Reloadable Operating Software
  • Message transmitted by using TCP/IP protocol
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • Support one RS-232 port, one RS-485 port and one CAN port
  • 2500Vrms photo-isolation protection on CAN side.
  • Jumper select 120Ω terminal resistor for CAN channel
  • Phillip 82C 250/251CAN Transceiver
  • Support both CAN specification 2.0A and 2.0B.
  • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
  • Max transmission distance of CAN over 1000m (follow CAN specification)
  • Built-in self-tuner ASIC controller on RS-485 port
  • Software configurable CAN and RS-232 communication parameters
  • Firmware updated from COM1 or Ethernet port
  • Support Web Configuration
  • Support maximum 25 Ethernet clients connection
  • Support for Virtual COM technology

Introduction

The I-7540D series are CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications, which may be based on private RS-232 protocol, private CAN protocol, Modbus protocol, CANopen protocol, DeviceNet protocol or J1939 protocol.

TCP Server Application:

The TCP Server function is used to implement communications between CAN devices and a TCP Client device. The TCP Client device can use ASCII commands base on the CAN format, in order to access the I-7540DM module. Then I-7540DM module will translate these ASCII commands into CAN format messages and send them to the CAN networks. Similarly, when a CAN format message is received from the CAN network, the I-7540DM will translates the message into ASCII commands and sent it to the connected TCP client device.

CAN Pair Connection Application:

The pair connection application of I-7540DM module is used to implement communication between two ends of CAN network via Ethernet. It is implemented via TCP or UDP protocol for CAN Network #1 can communicate with CAN Network #2.

Specifications

LED Indicators
Status 1 x Power
COM Ports
Ports 1 x RS-232
1 x RS-485 (self-turner ASIC inside)
Baud Rate 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.5 W
Mechanical
Casing Metal
Dimensions (mm) 102 x 125 x 28 (W x L x H)
Installation Wall Mount
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download



Datasheet

Documents

Ordering Information

I-7540DM     CR  CAN to Ethernet Gateway with one CAN bus, one RS-232, one RS-485 and one Ethernet (Metal Case) (RoHS)
