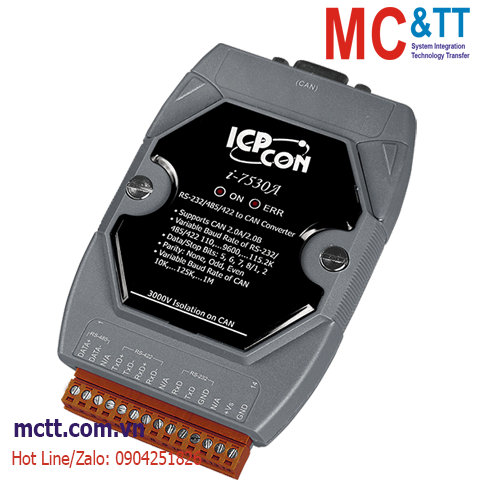

Bộ chuyển đổi RS-232/422/485 sang CAN ICP DAS I-7530A-G CR
The I-7530A is an RS-232/422/485 to CAN converter. It is a member of the I-7530 serial family, and inherits all of the features of the I-7530. The CAN interface of the I-7530A follows ISO 11898-2 specifi cation, the maximum CAN baud is up to 1 Mbps. There is one COM port in the I-7530A. As the I-7530A runs, it only receives the commands from one of these COM interfaces (i.e. from the RS-232, RS-485 or RS-422 interface) at the same time, but the CAN messages will be forwarded to all of these COM interfaces.
Moreover, we expand the functionalities of I-7530A for some special application. In pair connection mode, I-7530A can be used to connect PC with other RS-232/485/422 devices at the same time. The application architecture may be as follows.
3000V isolation on CAN side
The CAN port of I-7530A is an isolated with 3000V isolation. This isolation can protect the local RS-232/485/422 devices from the damage signal coming from CAN network.
The I-7530A Watchdog is a hardware reset circuit to monitor the I-7530A’s operation status. When working in harsh or noisy environment, the I-7530A may be down by the external signal. The circuit may let the I-7530A to work continuously and never halt.
Power and Error indicator display
There are two indicators on the I-7530A.The power indicator can help user to check whether the I-7530A is standby or transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7530A.
|Status||1 x Power
1 x CAN status
|Ports||1 x RS-232
1 x RS-485 (self-tunner ASIC inside)
1 x RS-422 (self-tunner ASIC inside)
(these ports can’t be used simultaneously)
|Baud Rate||110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps|
|Parity||None, Even, Odd|
|Data Bit||5, 6, 7, 8|
|Receive Buffer||900 data frames|
|Baud Rate||10 k ~ 1 M bps|
|Isolation||3000 VDC for DC-to-DC, 2500 Vrms for photo-couple|
|Terminal Resistor||Selectable 120Ω terminal resistor by jumper|
|Receive Buffer||1000 data frames|
|Input Range||+10 VDC ~ +30 VDC|
|Dimensions (mm)||72 x 118 x 33 (W x L x H)|
|Operating Temperature||-25 ~ +75 °C|
|Storage Temperature||-30 ~ +80 °C|
|Humidity||10 ~ 90% RH, Non-condensing|
|I-7530A-G CR||Intelligent RS-232/485/422 to CAN converter (RoHS)|
