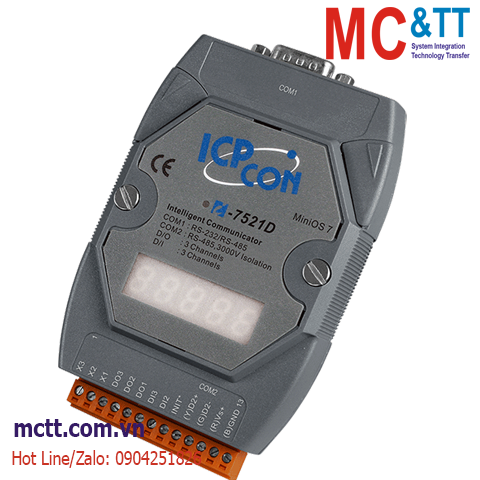

Bộ chuyển đổi RS-232 sang RS-232/485 + 2xDI + 3xDO ICP DAS I-7521D-G CR

Chia sẻ:
Mã sản phẩm: I-7521D-G
Thương hiệu: ICP DAS
Tình trạng:

Addressable RS-485 to RS-232/RS-485 Converter with 2 DI, 3 DO and 7-Segment LED Display (Gray Cover)

Liên hệ
Mô tả

Bộ chuyển đổi RS-232 sang RS-232/485 + 2xDI + 3xDO ICP DAS I-7521D-G CR

Feature

• Includes "Addressable RS-485 to RS-232 Converter" firmware
• Supports Dual-Watchdog commands
• Supports Power-up value & safe value for DO
• Supports real-time monitoring/control for the onboard DI/DO
• Includes a 1KB queue buffer for each RS-232 interface
• Low power consumption
• R.O.C. Invention Patent No. 086674, No.103060, No. 132457
• 3000 V isolation on the RS-485 interface

Introduction

Most RS-232 devices don't support device addressing. The ICPDAS I-752N series assigns a unique address to any RS-232 device installed on an RS-485 network. When the Host PC sends a command with a device address to the RS-485 network, the destination I-752N module will remove the address field, and then pass the other commands to its local RS-232 devices. The response from the local RS-232 devices will be returned to the Host PC via the I-752N module. ICP DAS I-752N products are unique in that they are a Master-type converter that use our R.O.C. Patent 086674, while most other converters are a Slave-type, which cannot operate without a Host PC. In real industrial applications, many users are not satisfied with Slave-type converters as they cannot be adapted to individual requirements.

Application

Specifications

CPU Module
CPU 80188 or compatible, 20 MHz
Flash 512 KB
SRAM 128 KB
Watchdog Timer Yes
Digital Input
Channels 2
Type Dry Contact, Non-isolated
ON Voltage Level Close to GND
OFF Voltage Level Open
Digital Output
Channels 3
Type Open Collector
Load Voltage +30 VDC
Load Current 100 mA
COM Ports
Ports 1 x RS-485 (3000 VDC Isolated)
1 x RS-232/RS-485 (DB-9 male)
Baud Rate 115200 bps Max.
Power
Reverse Polarity Protection Yes
Input Range +10 ~ 30 VDC
Consumption 3.0 W
Mechanical
Dimensions (mm) 72 x 119 x 33 (W x H x D)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90 % RH

Download

Datasheet

Documents

Ordering Information

I-7521D-G     CR  Addressable RS-485 to RS-232/RS-485 Converter with 2 DI, 3 DO and 7-Segment LED Display (Gray Cover) (RoHS)
