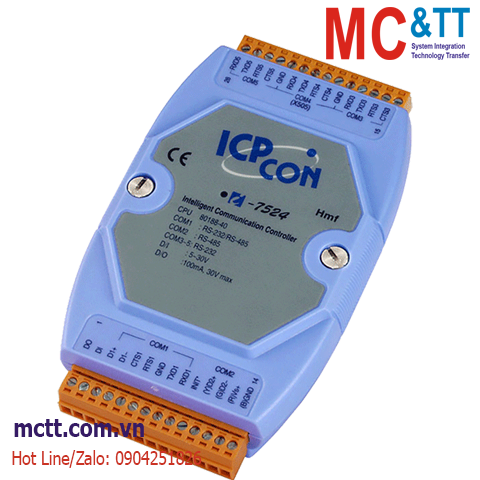

Bộ chuyển đổi RS-485 sang 4 cổng RS-232/485 + 1xDI + 1xDO ICP DAS I-7524 CR
Feature
• Includes "Addressable RS-485 to RS-232 Converter" firmware
• Supports Dual-Watchdog commands
• Supports Power-up value & safe value for DO
• Supports real-time monitoring/control for the onboard DI/DO
• Includes a 1KB queue buffer for each RS-232 interface
• Low power consumption
• R.O.C. Invention Patent No. 086674, No.103060, No. 132457
Introduction
Most RS-232 devices don't support device addressing. The ICPDAS I-752N series assigns a unique address to any RS-232 device installed on an RS-485 network. When the Host PC sends a command with a device address to the RS-485 network, the destination I-752N module will remove the address field, and then pass the other commands to its local RS-232 devices. The response from the local RS-232 devices will be returned to the Host PC via the I-752N module. ICP DAS I-752N products are unique in that they are a Master-type converter that use our R.O.C. Patent 086674, while most other converters are a Slave-type, which cannot operate without a Host PC. In real industrial applications, many users are not satisfied with Slave-type converters as they cannot be adapted to individual requirements.
Application
Specifications
| CPU Module |
| CPU |
80188 or compatible, 40 MHz |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Yes |
| Digital Input |
| Channels |
1 |
| Type |
Dry Contact, Non-isolated |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Digital Output |
| Channels |
1 |
| Type |
Open Collector |
| Load Voltage |
+30 VDC |
| Load Current |
100 mA |
| COM Ports |
| Ports |
3 x RS-232
1 x RS-485
1 x RS-232/RS-485 |
| Baud Rate |
115200 bps Max. |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 33 (W x H x D) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90 % RH |
Download
Datasheet
Documents
Ordering Information
| I-7524 CR |
Addressable RS-485 to 4 x RS-232/RS-485 Converter with 1 DI and 1 DO (Blue Cover) (RoHS) |
