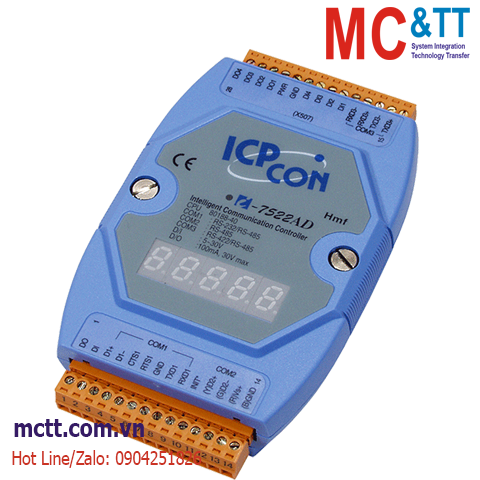

Bộ chuyển đổi RS-485 sang 2 cổng RS-232/422/485 + 5xDI + 5xDO ICP DAS I-7522AD CR

Bộ chuyển đổi RS-485 sang 2 cổng RS-232/422/485 + 5xDI + 5xDO ICP DAS I-7522AD CR

Feature

• Includes "Addressable RS-485 to RS-232 Converter" firmware
• Supports Dual-Watchdog commands
• Supports Power-up value & safe value for DO
• Supports real-time monitoring/control for the onboard DI/DO
• Includes a 1KB queue buffer for each RS-232 interface
• Low power consumption
• R.O.C. Invention Patent No. 086674, No.103060, No. 132457

Introduction

Most RS-232 devices don't support device addressing. The ICPDAS I-752N series assigns a unique address to any RS-232 device installed on an RS-485 network. When the Host PC sends a command with a device address to the RS-485 network, the destination I-752N module will remove the address field, and then pass the other commands to its local RS-232 devices. The response from the local RS-232 devices will be returned to the Host PC via the I-752N module. ICP DAS I-752N products are unique in that they are a Master-type converter that use our R.O.C. Patent 086674, while most other converters are a Slave-type, which cannot operate without a Host PC. In real industrial applications, many users are not satisfied with Slave-type converters as they cannot be adapted to individual requirements.

Application

Specifications

Download

Datasheet

Documents

Ordering Information
