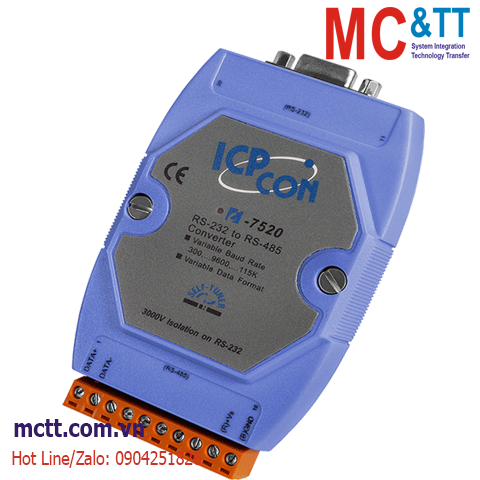

Bộ chuyển đổi RS-232 sang RS-485 ICP DAS I-7520 CR
Feature
- Automatic RS-485 Direction Control
- ESD Protection for the RS-232/422/485 Data Line
- 3000 VDC Isolation Protection on the RS-232 side
- Transmission Speed of up to 115200 bps
Introduction
Most industrial computer systems provide standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals, which transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. The I-7520 lets you easily build an industrial grade, long-distance communication system using standard PC hardware.
The design of the isolation between the I-7520/A and the I-7520R/AR is different. If the user wants to supply power from the PLC/PC, the I-7520R/AR should be used, otherwise the isolation will be broken.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3000 VDC on RS-232 side |
| EMS Protection |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-232 Input (Master)
1 x RS-485 Output (Slave) |
| Baud Rate |
300 ~ 115200 bps |
| Power |
| Input Range |
+10 VDC ~ +30 VDC (Non-isolated) |
| Consumption |
1.2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 x 35 x 118 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7520 CR |
Isolated RS-232 to RS-485 Converter (Blue Cover) (RoHS) |
