Module RS-485 DCON 3 trục đầu vào Encoder/Counter ICP DAS I-7083-G CR

Chia sẻ:
Mã sản phẩm: I-7083-G
Thương hiệu: ICP DAS
Tình trạng:

3-axis, 32-bit Encoder/Counter Input Module

Liên hệ
Mô tả

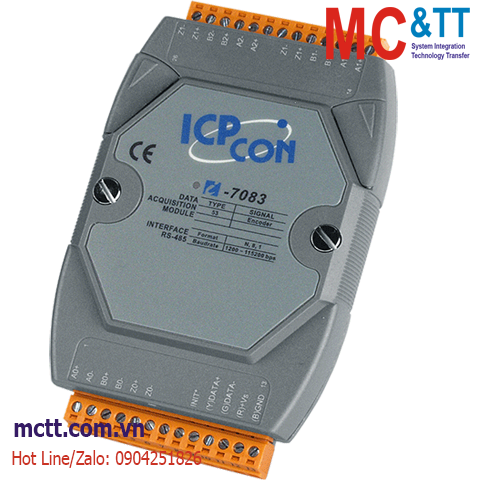

Module RS-485 DCON 3 trục đầu vào Encoder/Counter ICP DAS I-7083-G CR

Features

  • 3-Axis Encoder Inputs
  • 1 MHz Input Rate
  • 32-bit Count Range
  • Quadrant, Pulse/Dir, CW/CCW
  • 2500 Vrms Optical Isolation
  • Built-in Dual Watchdog

Introduction

The I-7083 and I-7083B are 3-axis high speed encoder modules. Each axis on the module can be independently confi gured as one of Quadrant, Pulse/Dir or CW/CCW input mode with a maximum input rate of 1 MHz. The high-end specifications of the I-7083/I-7083B and complete software support make it ideal for a wide range of applications in position measurement of motion systems working in industrial and laboratory environments. The I-7083B is an improved version of I-7083 with virtual battery backup function for counter value.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
LED Indicators
Status 1 x Power and Communication
Counter/Frequency/Encoder Input
Channels 3-axis
Type Encoder
Encoder Mode CW/CCW, Pulse/Dir, AB Phase
Counter/Encoder Bits 32-bit
Sink/Source (NPN/PNP) Sink
ON Voltage Level 5 V: +3.5 ~ +5 VDC
12 V with 1 kΩ External Resistor: +5 ~ +12 VDC
24 V with 2 kΩ External Resistor: +7 ~ +24 VDC
OFF Voltage Level +2 VDC Max.
Max. Speed 1 MHz
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.5 W Max.
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7083-G     CR  3-axis, 32-bit Encoder/Counter Input Module using DCON Protocol (Gray Cover) (RoHS)
