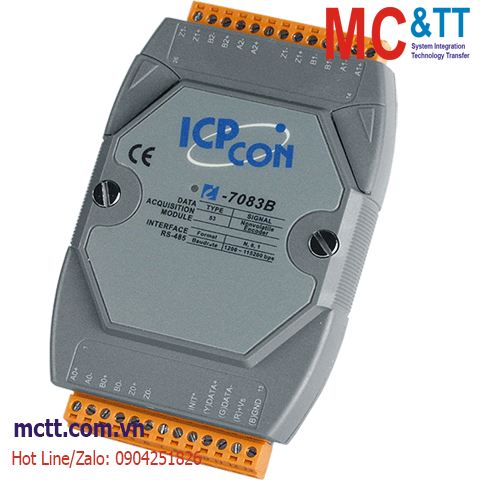

Module RS-485 DCON 3 trục đầu vào Encoder/Counter ICP DAS I-7083B-G CR
Features
- 3-Axis Encoder Inputs
- 1 MHz Input Rate
- 32-bit Count Range
- Quadrant, Pulse/Dir, CW/CCW
- 2500 Vrms Optical Isolation
- Built-in Dual Watchdog
Introduction
The I-7083 and I-7083B are 3-axis high speed encoder modules. Each axis on the module can be independently confi gured as one of Quadrant, Pulse/Dir or CW/CCW input mode with a maximum input rate of 1 MHz. The high-end specifications of the I-7083/I-7083B and complete software support make it ideal for a wide range of applications in position measurement of motion systems working in industrial and laboratory environments. The I-7083B is an improved version of I-7083 with virtual battery backup function for counter value.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Memory |
| Battery Backup |
Yes |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication |
| Counter/Frequency/Encoder Input |
| Channels |
3-axis |
| Type |
Encoder |
| Encoder Mode |
CW/CCW, Pulse/Dir, AB Phase |
| Counter/Encoder Bits |
32-bit |
| Sink/Source (NPN/PNP) |
Sink |
| ON Voltage Level |
5 V: +3.5 ~ +5 VDC
12 V with 1 kΩ External Resistor: +5 ~ +12 VDC
24 V with 2 kΩ External Resistor: +7 ~ +24 VDC |
| OFF Voltage Level |
+2 VDC Max. |
| Max. Speed |
1 MHz |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.7 W Max. |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7083B-G CR |
3-axis, 32-bit Encoder/Counter Input Module with Virtual Battery Backup using DCON Protocol (Gray Cover) (RoHS) |
