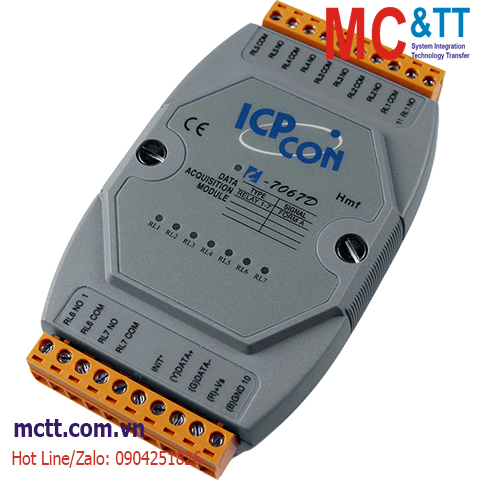

Module RS-485 DCON 7 kênh đầu ra Relay ICP DAS I-7067D-G CR

Chia sẻ:
Mã sản phẩm: I-7067D-G
Thương hiệu: ICP DAS
Tình trạng:

7-ch Signal Relay Module with LED Display

Liên hệ
Mô tả

Module RS-485 DCON 7 kênh đầu ra Relay ICP DAS I-7067D-G CR

Features

  • 7 Signal Relay Outputs
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

The 7061 series provides 12 power relay output channels and the 7067 series provides 7 signal relay output channels. There are options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities in industrial environment. The “D” versions of the 7061 series provide 12 LED indicators and the “D” versions of the 7067 series provide 7 LED indicators that can be used to monitor the status of the relay output channels. The “M” versions of each series support both the Modbus RTU and DCON protocols, which can be configured via software. The 7061 series are the ideal solution for high power applications and the 7067 series are the ideal solution for small signal switching.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 1500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
7 x Digital Input/Relay Output
Relay Output
Channels 7 (Form A)
Type Signal Relay
Contact Material Gold overlay silver palladium
Contact Rating Form A:
0.5 A @ 120 VAC
1 A @ 24 VDC
Operate Time 5 ms
Release Time 2 ms
Electrical Endurance 1 x 10^5 ops.
Mechanical Endurance 5 x 10^6 ops.
Surge Strength 1500 VDC
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.9 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7067D-G     CR  7-ch Signal Relay Module with LED Display using DCON Protocol (Gray Cover) (RoHS)
