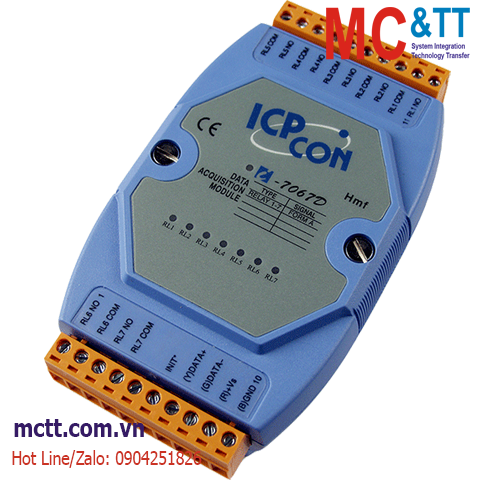

Module RS-485 DCON 7 kênh đầu ra Relay ICP DAS I-7067D CR
Features
- 7 Signal Relay Outputs
- Configurable Power-on Value and Safe Value Settings
- Built-in Dual Watchdog
Introduction
The 7061 series provides 12 power relay output channels and the 7067 series provides 7 signal relay output channels. There are options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities in industrial environment. The “D” versions of the 7061 series provide 12 LED indicators and the “D” versions of the 7067 series provide 7 LED indicators that can be used to monitor the status of the relay output channels. The “M” versions of each series support both the Modbus RTU and DCON protocols, which can be configured via software. The 7061 series are the ideal solution for high power applications and the 7067 series are the ideal solution for small signal switching.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| Isolation |
| Intra-module Isolation |
1500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
7 x Digital Input/Relay Output |
| Relay Output |
| Channels |
7 (Form A) |
| Type |
Signal Relay |
| Contact Material |
Gold overlay silver palladium |
| Contact Rating |
Form A:
0.5 A @ 120 VAC
1 A @ 24 VDC |
| Operate Time |
5 ms |
| Release Time |
2 ms |
| Electrical Endurance |
1 x 10^5 ops. |
| Mechanical Endurance |
5 x 10^6 ops. |
| Surge Strength |
1500 VDC |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.9 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7067D CR |
7-ch Signal Relay Module with LED Display using DCON Protocol (Blue Cover) (RoHS) |
