8-ch Isolated (Wet, 80~250 VAC/±100~±250 VDC) DI Module with LED Display
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

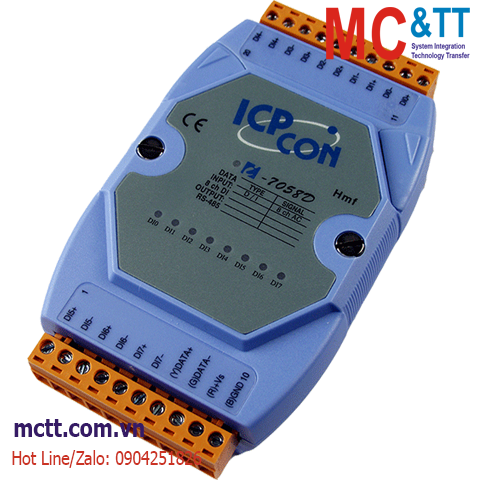

Module RS-485 DCON 8 kênh đầu vào số DI AC/DC ICP DAS I-7058D CR
Features
Introduction
The I-7058/I-7059 module offers 8 differential channels for AC/DC Digital Input, each of which features channel-to-channel photocouplerisolation. All DI channels are also able to be used as 16-bit counters. The I-7058D/I-7059D module has 8 LED indicators fthat can be used to monitor the status of the DI channels. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7058D/M-7059D module has the same hardware specifications as the I-7058/I-7059 module, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
CPU Module | |
---|---|
Watchdog Timer | Module, Communication (Programmable) |
Display | |
---|---|
Type | I/O LED Indicator |
Isolation | |
---|---|
Intra-module Isolation | 3750 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ±4 kV for Power Line |
ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
LED Indicators | |
---|---|
Status | 1 x Power and Communication 8 x Digital Input |
Digital Input/Counter | |
---|---|
Channels | 8 |
Type | Wet Contact |
Sink/Source (NPN/PNP) | Sink/Source |
ON Voltage Level | 80 ~ 250 VAC ±80 ~ ±250 VDC |
OFF Voltage Level | 30 VAC Max. ±30 VDC Max. |
Max. Counts | 65535 (16-bit) |
Min. Pulse Width | 5 ms |
Input Impedance | 68 kΩ |
Overvoltage Protection | 300 VAC/VDC Max. |
Channel-to-Channel Isolation | ±2 kV |
COM Ports | |
---|---|
Ports | 1 x RS-485 |
Baud Rate | 1200 ~ 115200 bps |
Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
Protocol | DCON |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 1.0 W |
Mechanical | |
---|---|
Dimensions (mm) | 123 x 72 x 35 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -40 ~ +85 °C |
Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering Information
I-7058D CR | 8-ch Isolated (Wet, 80~250 VAC/±100~±250 VDC) DI Module with LED Display using DCON Protocol (Blue Cover) (RoHS) |
