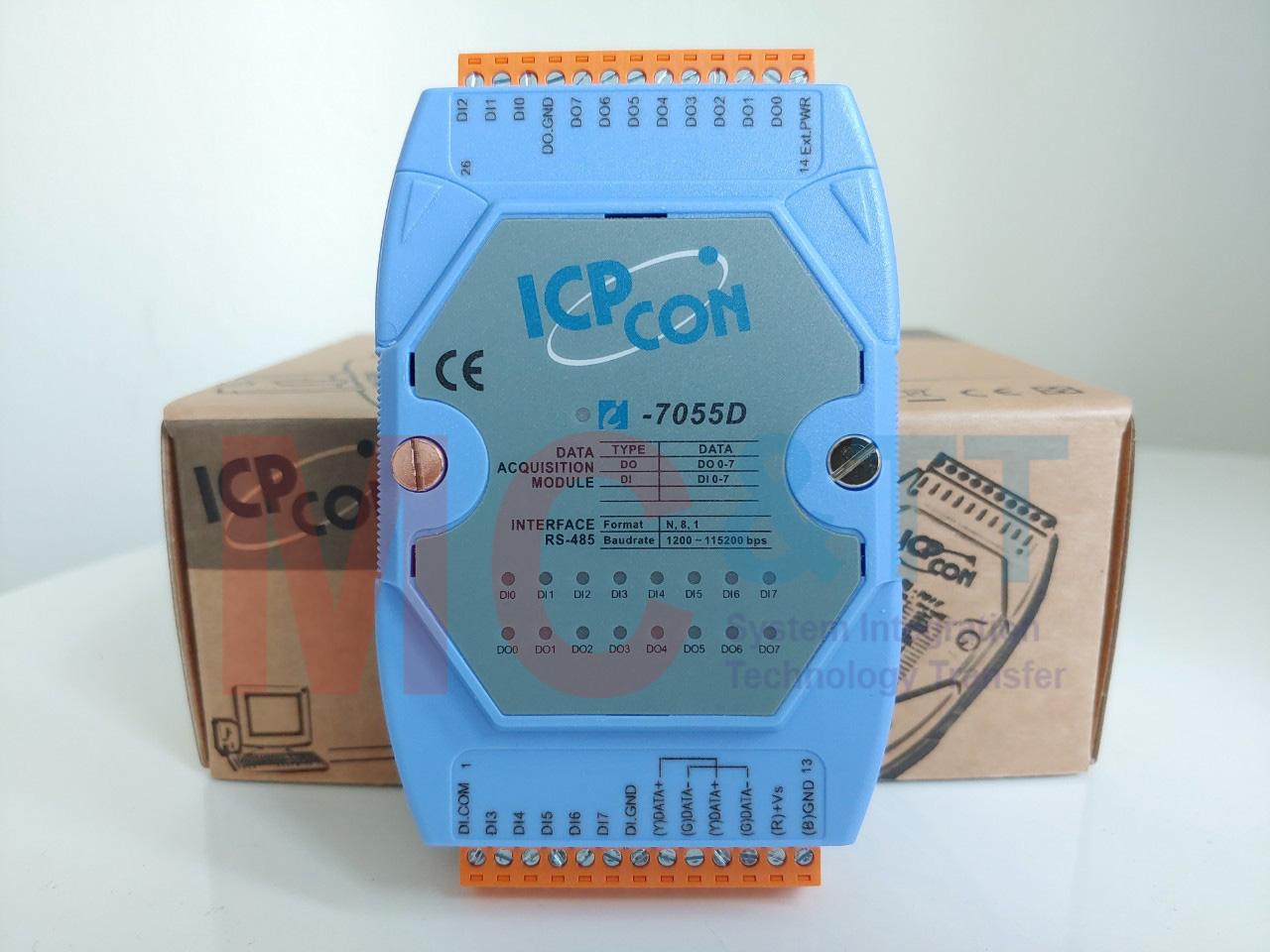

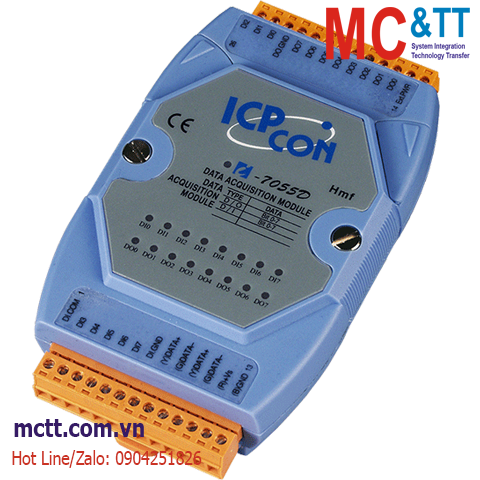

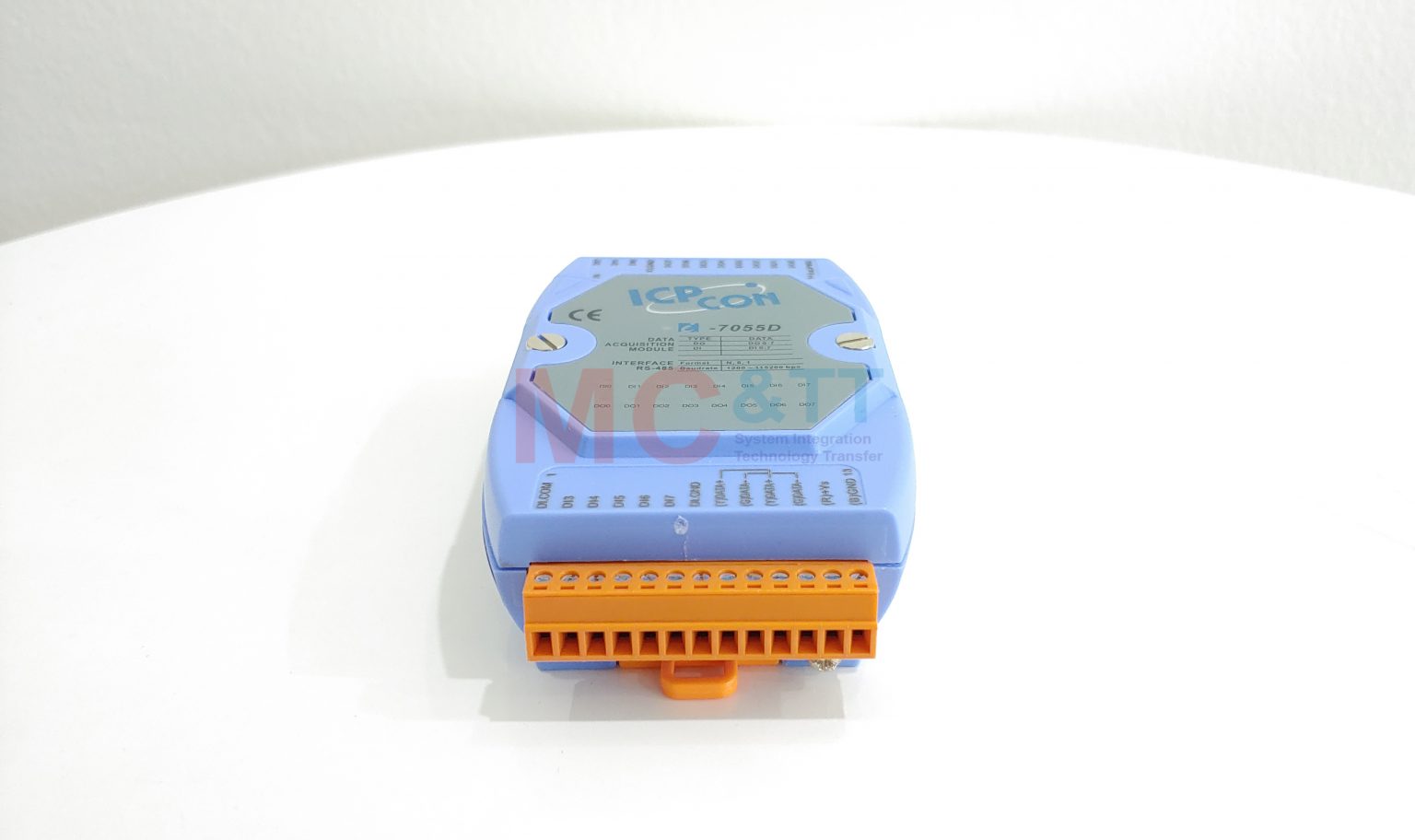

Module RS-485 DCON 8 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS I-7055D CR
Features
- Source-type Digital Output with Overload Protection
- Digital Input Channels Can be Used as 16-bit Counters
- Short Circuit Protection
- Configurable Power-on Value and Safe Value Settings
Introduction
The I-7055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The I-7055 supports source-type output with short circuit protection. There are options to enable both power-on and safe values. The I-7055D has 16 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. The M-7055 has the same hardware specifications as the I-7055, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication
8 x Digital Input
8 x Digital Output |
| Analog Output |
| Current Output Wiring |
|
| Open Wire Detection |
|
| Digital Input/Counter |
| Channels |
8 |
| Type |
Dry Contact,
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 ~ +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +4 VDC Max. |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Effective Distance |
500 m Max. |
| Input Impedance |
10 kΩ |
| Overvoltage Protection |
±70 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Open Source |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+10 ~ +40 VDC |
| Load Current |
650 mA/channel |
| Overvoltage Protection |
47 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.6 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information

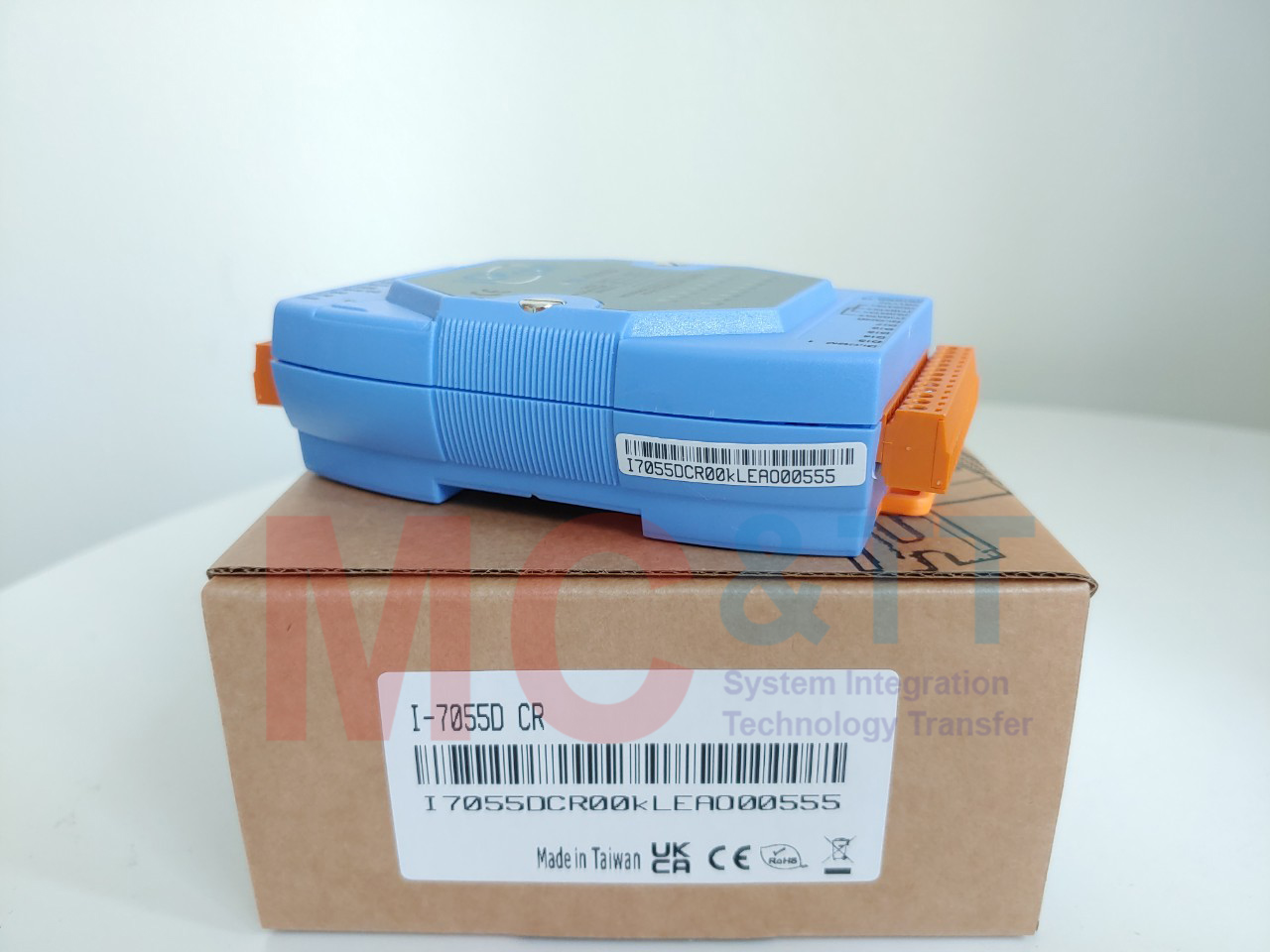

| I-7055D CR |
8-ch Isolated (Dry, Wet) DI and 8-ch Isolated (Source, PNP, 10~40 VDC) DO Module with LED Display using DCON Protocol (Blue Cover) (RoHS) |
