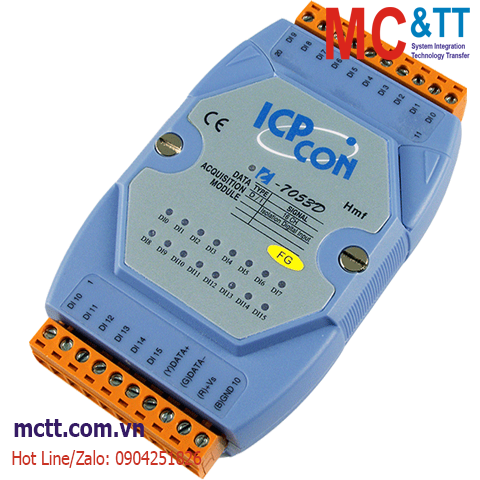

Module RS-485 DCON 16 kênh đầu vào số DI ICP DAS I-7053D-FG CR
Features
- 16 Source-type Digital Inputs
- Long Effective Distance
- Dry Contact Input
- Non-isolated for All Channels
- All Channels Can be Used as 16-bit Counters
- Built-in Dual Watchdog
Introduction
The I-7052 offers 6 fully independent channels and 2 common ground channels for digital input. The diffential inputs feature channel-to-isolation. In addition, you can choose either sink- or source-type input via wire connections. All channels are able to be used as 16-bit has 8 LED indicators for DI channel status monitoring. 4 kV ESD protection and 5000 Vrms intra-module isolation are standard. The M-7052 has the same hardware specifications as the I-7052, but provides additional support for the Modbus RTU protocol as well as the DCON protocol. The I-7053-FG features a long effective distance measurement for dry contact digital input of up to 500 meters. The I-7053-FG supports source-type input. All 16 channels are also able to be used as 16-bit counters, each of which are non-isolated. The I-7053D-FG has 16 LED indicators for channel status monitoring. The M-7053 has the same hardware specifications as the I-7053-FG, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| LED Indicators |
| Status |
1 x Power and Communication
16 x Digital Input |
| Digital Input/Counter |
| Channels |
16 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Open |
| OFF Voltage Level |
Close to GND |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Effective Distance |
500 m Max. |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.9 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7053D-FG CR |
16-ch Non-isolated (Dry) DI Module with LED Display using DCON Protocol (Blue Cover) (RoHS) |
