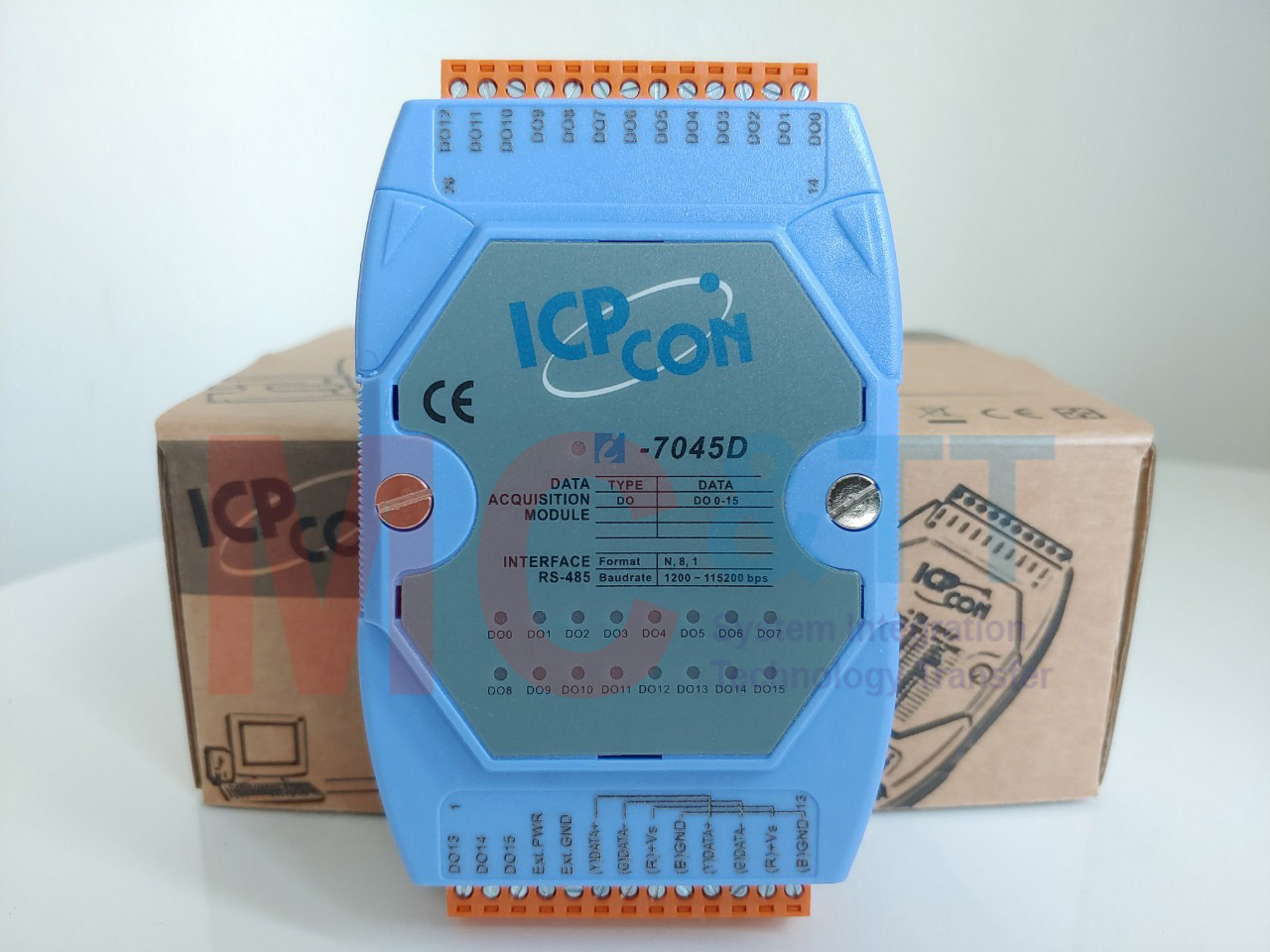

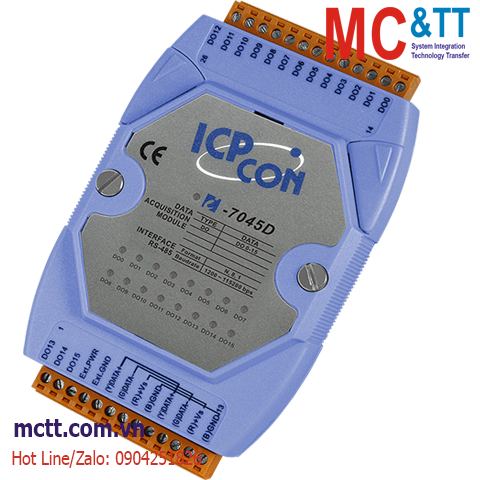

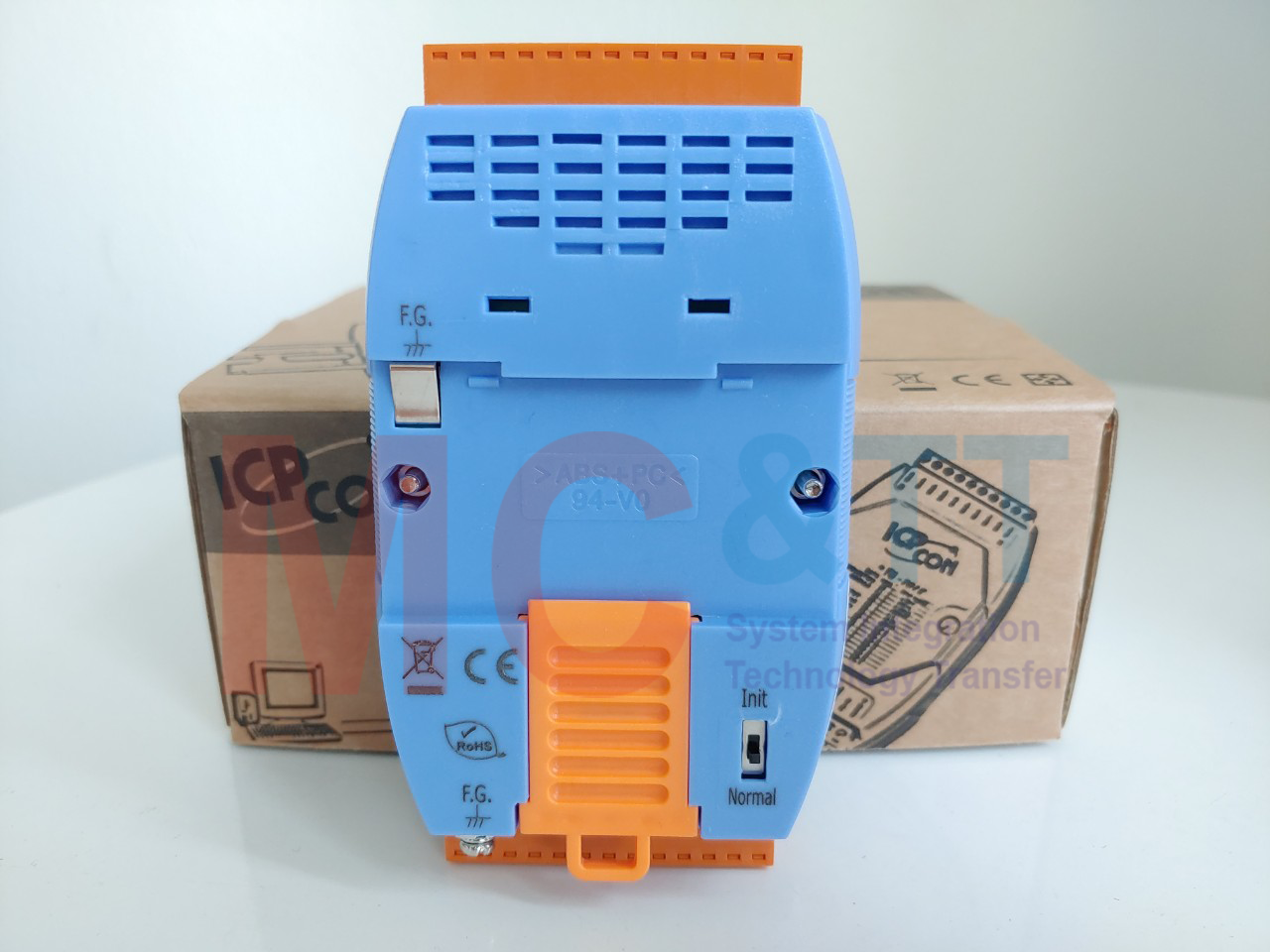

Module RS-485 DCON 16 kênh đầu ra số DO ICP DAS I-7045D CR
Features
- Source-type Digital Output with Overload Protection
- Configurable Power-on Value and Safe Value Settings
- Short Circuit Protection
- Overload and Overvoltage Protection
- Built-in Dual Watchdog
Introduction
All modules in the 7045 series offer 16 digital output channels, each of which features photocoupler isolation. The I-7045(D)/M-7045(D) supports sourcetype output, while the I-7045(D)-NPN/M-7045(D)-NPN supports sink-type, and both are equipped with short circuit protection. There are options to enable both power-on and safe values, and 16 LED indicators that can be used to monitor the status of the digital output channels. 4 kV ESD protection, 4 kV EFT protection, 3 kV surge protection for power input and 3750 VDC Intra-module isolation are standard. The M-7045(D)/M-7075(D)-NPN has the same hardware specifications as the I-7045(D)/I-7045(D)-NPN, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for the 16 DO channels and Power,
±2 kV for the RS-485 Port |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication
16 x Digital Output |
| Digital Output |
| Channels |
16 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+10 ~ +40 VDC |
| Load Current |
650 mA/channel |
| Overvoltage Protection |
47 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.5 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information

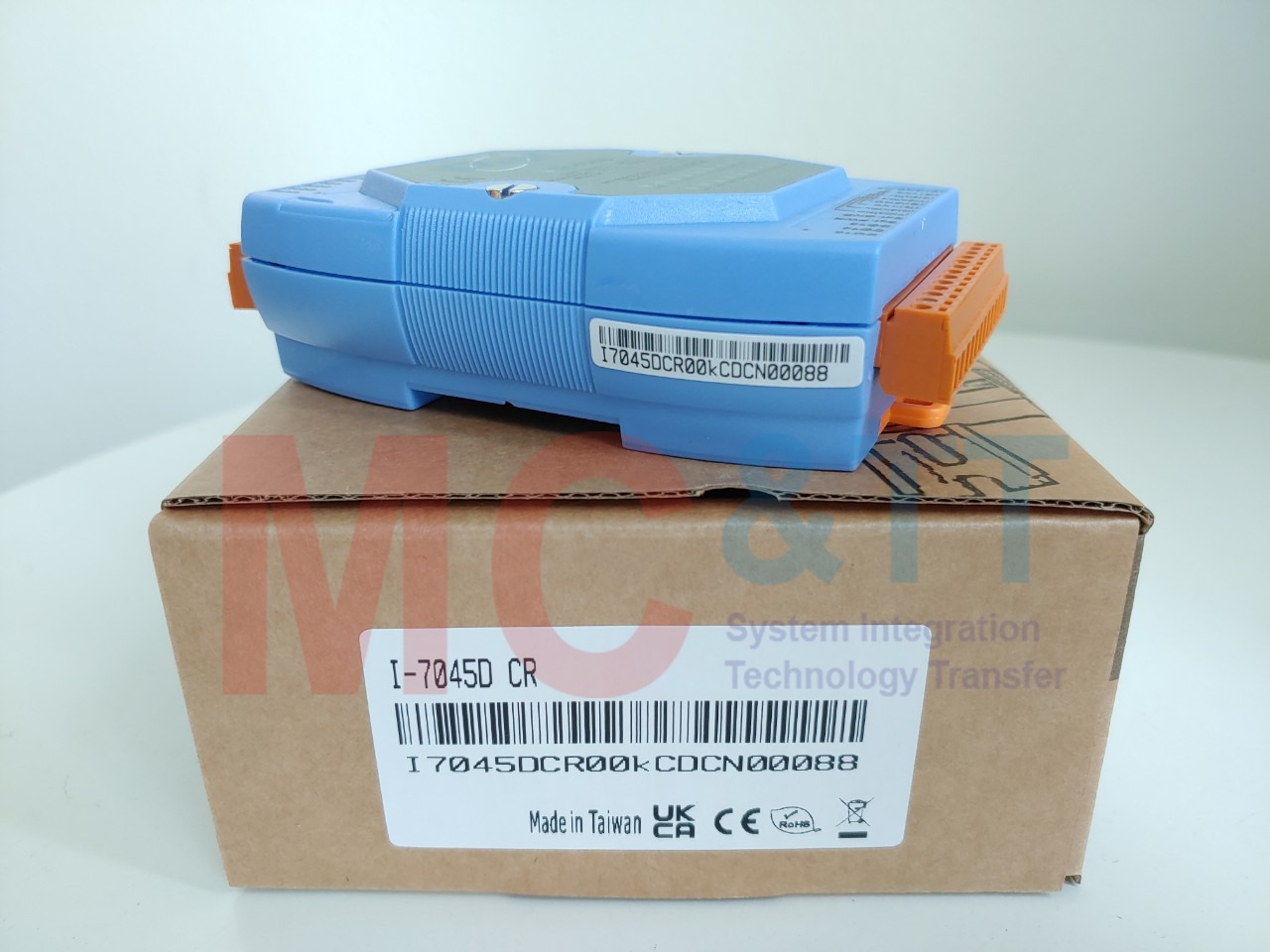

| I-7045D CR |
16-ch Isolated (Source, PNP, 10~40 VDC) DO Module with LED Display using DCON Protocol (Blue Cover) (RoHS) |
