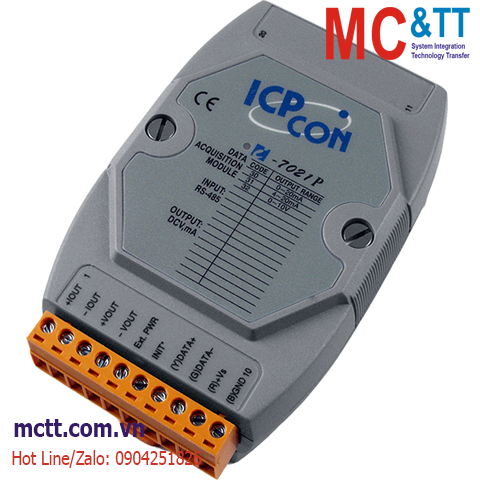

Module RS-485 DCON 1 kênh đầu ra tương tự AO ICP DAS I-7021P-G CR
Features
- Current or Voltage Output
- High Resolution: 16-bit
- Software Selectable Current or Voltage Output
- Open Wire Detection for Current Output
- Readback Voltage or Current
- Configurable Power-on Value and Safe Value Settings
- Programmable Output Slope
- Built-in Dual Watchdog
Introduction
The I-7021 is a 12-bit and I-7021P is a 16-bit, 1-channel Analog Output module that is designed for both voltage and current output. The I-7021 features 3000 VDC intra-module isolation and the power source for the current output can be selected as either internal or external via a jumper. Options are also provided to allow power-on and safe values to be set. Both support the DCON protocols which can be configured via software.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Output |
| Channels |
1 Unipolar |
| Type |
Voltage
Current |
| Range |
Voltage: 0 ~ +10 V
Current: 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution |
16-bit |
| Accuracy |
±0.02% of FSR |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
10 ms |
| Open Wire Detection |
Yes |
| Readback Accuracy |
±0.5% of FSR |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.8 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7021P-G CR |
1-ch 16-bit AO Module using DCON Protocol (Gray Cover) (RoHS) |
