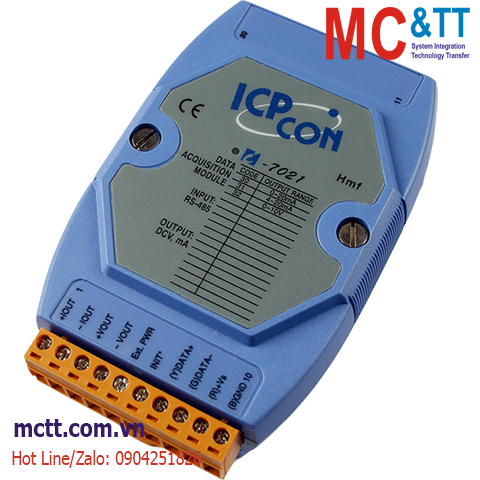

Module RS-485 DCON 1 kênh đầu ra tương tự AO ICP DAS I-7021 CR


  • Current or Voltage Output
  • High Resolution: 12-bit
  • Software Selectable Current or Voltage Output
  • Open Wire Detection for Current Output
  • Readback Voltage or Current
  • Configurable Power-on Value and Safe Value Settings
  • Programmable Output Slope
  • Built-in Dual Watchdog


The I-7021 is a 12-bit and I-7021P is a 16-bit, 1-channel Analog Output module that is designed for both voltage and current output. The I-7021 features 3000 VDC intra-module isolation and the power source for the current output can be selected as either internal or external via a jumper. Options are also provided to allow power-on and safe values to be set. Both support the DCON protocols which can be configured via software.


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment


CPU Module
Watchdog Timer Module, Communication (Programmable)
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Output
Channels 1 Unipolar
Type Voltage
Range Voltage: 0 ~ +10 V
Current: 0 ~ +20 mA, +4 ~ +20 mA
Resolution 12-bit
Accuracy ±0.1% of FSR
Short Circuit Protection Yes
DA Output Response Time 10 ms
Open Wire Detection Yes
Readback Accuracy ±0.5% of FSR
Power-on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol DCON
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.8 W
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing




Ordering Information

I-7021     CR  1-ch 12-bit AO Module using DCON Protocol (Blue Cover) (RoHS)
