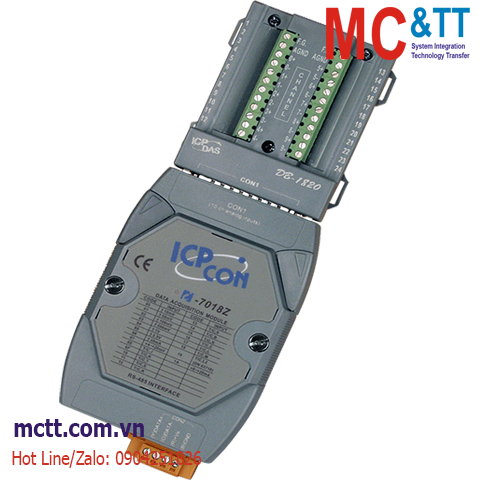

Module RS-485 DCON 10 kênh đầu vào tương tự AI (Cặp nhiệt, Thermocouple) ICP DAS I-7018Z-G/S CR

Chia sẻ:
Mã sản phẩm: I-7018Z-G/S
Thương hiệu: ICP DAS
Tình trạng:

10-ch Thermocouple Input Module

Liên hệ
Mô tả

Module RS-485 DCON 10 kênh đầu vào tương tự AI (Cặp nhiệt, Thermocouple) ICP DAS I-7018Z-G/S CR

Features

  • 10-channel Analog Input
  • Provides Stable and Consistent Temperature Output
  • Current, Voltage, and Thermocouple Inputs
  • Provides Overvoltage Protection
  • Individual Channel Configuration
  • Open Thermocouple Detection
  • Built-in Dual Watchdog

Introduction

The I-7018Z/M-7018Z is a 10-channel universal Analog Input module with an RS-485 interface that is especially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. Besides the thermocouple inputs, the I-7018Z/M-7018Z also supports voltage and current input. The voltage input range can be from +/-15 mV to +/-2.5 V. Up to 10 different types of Analog Input can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input channels. The M-7018Z provides additional support for both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7018Z.




Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 10 Differential
Type Voltage
Current
Thermocouple
Sensor Type Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Temperature Output Consistency Yes
Stable Temperature Output in the Field Yes
Range Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor)
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 10 Hz (Total)
Input Impedance > 400 kΩ
Common Voltage Protection ±200 VDC
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Yes
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.0 W
Mechanical
Dimensions (mm) I-7018Z: 116 x 73 x 35 (W x L x H)
DB-1820: 65 x 78 x 22 (W x L x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7018Z-G/S     CR  10-ch Thermocouple Input Module using DCON Protocol (Gray Cover) (RoHS)

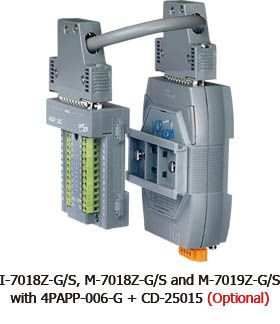

Includes DB-1820 Daughter Board and Plastic DIN Rail (4PAPP-006-G)
