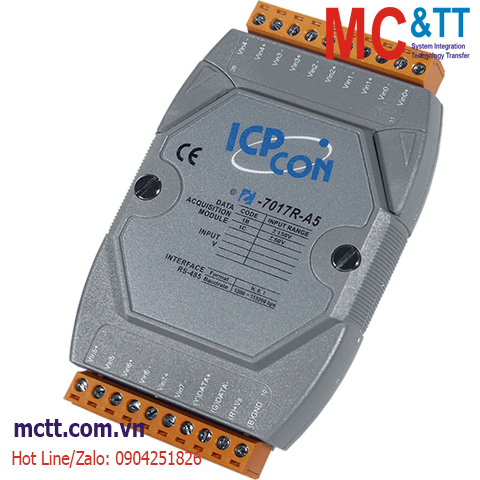

Module RS-485 DCON 8 kênh đầu vào tương tự AI ICP DAS I-7017R-A5-G CR

Chia sẻ:
Mã sản phẩm: I-7017R-A5-G
Thương hiệu: ICP DAS
Tình trạng:

8-ch High Voltage (±50 V, ±150 V) AI Module with High Voltage Protection

Liên hệ
Mô tả

Module RS-485 DCON 8 kênh đầu vào tương tự AI ICP DAS I-7017R-A5-G CR

Features

  • High Voltage Input
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Built-in Dual Watchdog

Introduction

The I-7017R is an 8-channel analog input module with an extremely high quality protection mechanism where the overvoltage protection is 240 Vrms. The input type includes both voltage and current. The I-7017R is an upgraded version of the I-7017, with the only difference being that the I-7017R is much more suitable for critically harsh environments. The sampling rate of the I-7017R is adjustable, meaning that either fast mode or normal mode can be selected. The I-7017R also has 4 kV ESD protection as well as 3000 VDC intra-module isolation. The I-7017R-A5 is an 8-channel analog input module that is especially designed for high voltage input, and has an input range of between -50 V ~ +50 V or -150 V ~ +150 V. The M-7017R and M-7017R-A5 has the same specifications as the I-7017R and I-7017R-A5, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 8 Differential
Type Voltage
Range ±50 V, ±150 V
Resolution 16-bit
Accuracy Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 50 Hz
Input Impedance Voltage: 290 kΩ
Common Voltage Protection ±200 VDC
Overvoltage Protection ±200 VDC
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.6 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7017R-A5-G     CR  8-ch High Voltage (±50 V, ±150 V) AI Module with High Voltage Protection using DCON Protocol (Gray Cover) (RoHS)
