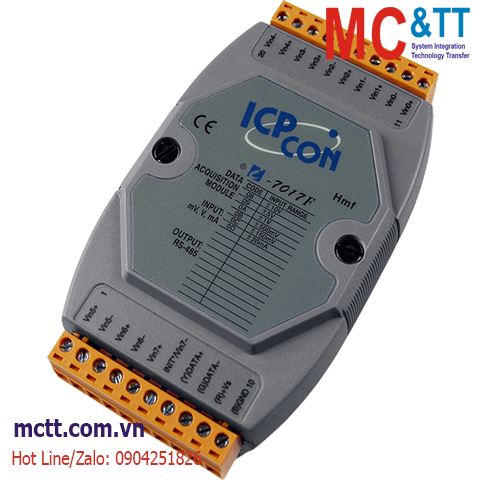

Module RS-485 DCON 8 kênh đầu vào tương tự AI ICP DAS I-7017F-G CR

Chia sẻ:
Mã sản phẩm: I-7017F-G
Thương hiệu: ICP DAS
Tình trạng:

8-ch AI (Fast Sampling Version) Module

Liên hệ
Mô tả

Module RS-485 DCON 8 kênh đầu vào tương tự AI ICP DAS I-7017F-G CR

Features

  • 8 Differential, or 6 Differential and 2 Single-ended Analog Inputs
  • Voltage and Current Inputs
  • High Resolution: 16-bit
  • Open Wire Detection for 4 ~ 20 mA
  • Built-in Dual Watchdog

Introduction

The I-7017 and I-7017F are analog input modules that provide either 8 differential input channels, or 6 differential input channels and 2 singleended input channels selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The sampling rate of the I-7017F is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels. Other hardware specifications are the same as the I-7017.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±2 kV Contact for each Terminal
RS Immunity (IEC 61000-4-3) ±4 kV for Power
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 6 Differential and 2 Single-ended, or 8 Differential.
Type Voltage
Current
Range ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor)
Resolution 16-bit
Accuracy Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 60 Hz
Input Impedance 20 MΩ
Common Voltage Protection ±15 VDC
Overvoltage Protection ±120 VDC
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.3 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7017F-G     CR  8-ch AI (Fast Sampling Version) Module using DCON Protocol (Gray Cover) (RoHS)
