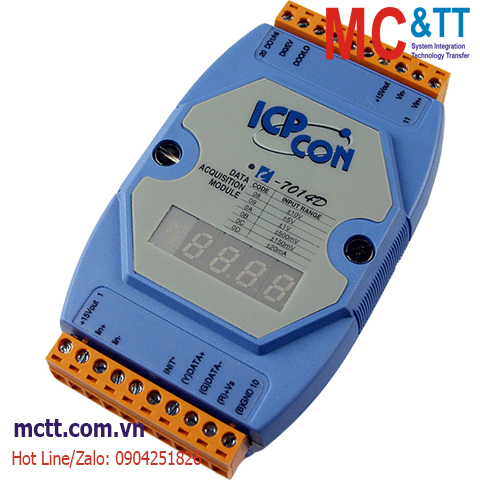

Module RS-485 DCON 1 kênh đầu vào tương tự AI + 2 kênh DO + 1 kênh DI ICP DAS I-7014D CR
Features
- Current, Voltage and Transmitter Input
- High Resolution: 16-bit
- 50 Hz Event Counter for Digital Input
- High/Low Alarm for Digital Output
- Built-in Dual Watchdog
Introduction
The I-7014 is an 1-channel Transmitter Input module that provides a +15 VDC isolated loop power supply for transmitter input, and is designed for both voltage and current input types. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7014 also features 3000 VDC intra-module isolation.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
5-Digit 7 Segment LED Display |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±2 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
1 Differential |
| Type |
Voltage
Current |
| Range |
±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA |
| Resolution |
16-bit |
| Accuracy |
±0.05% of FSR |
| Sampling Rate |
10 Hz |
| Input Impedance |
Voltage: 30 kΩ
Current: 125 Ω |
| Overvoltage Protection |
±15 VDC |
| Isolated Loop Power |
±15 VDC, 30 mA |
| Digital Input/Counter |
| Channels |
1 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Max. Counts |
65535 (16-bit) |
| Frequency |
50 Hz |
| Input Impedance |
3 kΩ |
| Overvoltage Protection |
±30 VDC |
| Digital Output |
| Channels |
2 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ +30 VDC |
| Load Current |
30 mA/channel |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.9 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7014D CR |
1-ch Transmitter Input with LED Display using DCON Protocol (Blue Cover) (RoHS) |
