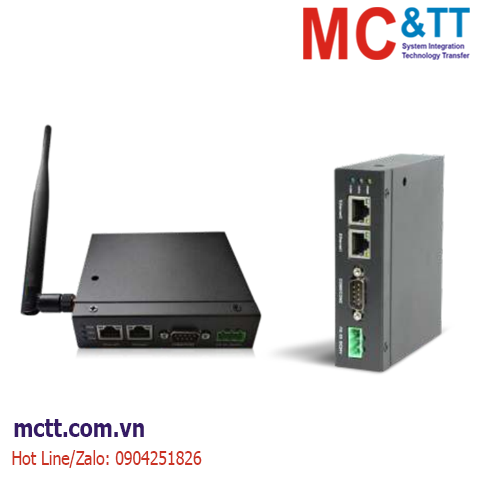

IoT gateway Kinco GW01-4G (ARM RISC 32Bit, 2 COM, 2 Ethernet, tích hợp 4G)
Tính năng
- Freescale industrial-grade CPU, 800MHz processor, 128MB memory
- Dual-port ethernet + COM, can connect hundreds of mainstream controllers, no need to change the existing architecture
- Easy configuration, easy to achieve data mapping, the device data transfer to the cloud
- Free choice of wireless or 4G, suitable for different demand
- Small size, easy to install (DIN rail installation)
Thông số kỹ thuật
|
Model |
GW01 |
GW01-4G |
GW01-WiFi |
|
Performance specification |
|
CPU |
ARM RISC 32Bit 800MHz |
|
Storage |
128MB NAND Flash Memory + 128MB DDR3 Memory |
|
RTC |
Built-in real time clock |
|
Ethernet |
2* 10/100M self-adaption |
|
Printer port |
USB Host/ Serial port |
|
WiFi |
None |
None |
2.4GHz WiFi |
| 4G |
None |
Built-in |
None |
|
Program download |
USB Slave (Micro USB)/ Ethernet |
USB Slave (Micro USB)/ Ethernet |
USB Slave (Micro USB)/ Ethernet/ WiFi |
| Cellular and Wireless |
None |
LTE-FDD Band 1/3/5/8
LTE-TDD Band 38/39/40/41
UMTS Band 1/8 GSM Band 3/8 |
IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm |
| VPN |
Support box remote upload and download and online monitoring, support PLC passthrough program upload and download and online debugging |
|
COM port |
COM0:RS232/RS485/RS422, COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC10V~DC28V, Built-in isolation power supply |
|
Rated power |
1.5W |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500 VAC 1 minute |
|
Structure specification |
| PCB |
None of spraying |
|
Shell color |
Black |
| Shell material |
Metallic |
| Shape size |
111.6*93.6*30 mm |
|
Installation |
DIN-rail mounting (35mm) |
| Weight |
0.31Kg |
|
Environment specification |
|
Operating temperature |
-10～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
| Panel protection grade |
Conforming to IP20 |
|
CE certification |
CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools V3.4 and above |
