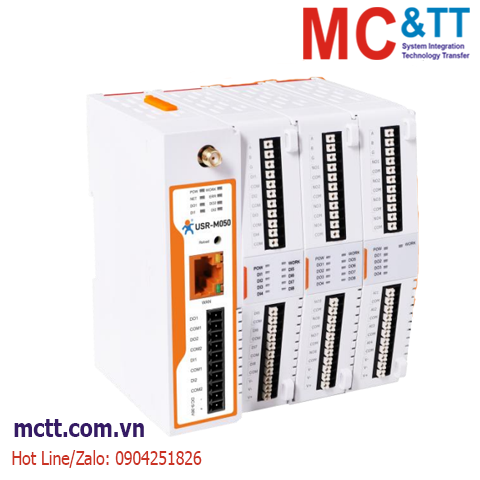

Module Ethernet IO Modbus TCP & MQTT 2 kênh DI + 2 kênh DO USR-M050
The USR-M050 is a new generation of intelligent network port IO controllers designedfor industrialautomation, equipment monitoring, energy management, and smart warehousing. This product features 2 digital input (DI) and 2 digital output (DO) channels, supporting the expansionof variousIOacquisition and control functions. It offers flexible communication capabilities, includingdual-bandWiFiand Ethernet network connections. With its compact design and high performance, it canbeeasilydeployed in various industrial settings, meeting the needs for efficient data collection andremotecontrol. This helps enterprises achieve intelligent upgrades. The product uses RISC-V processor, supports multiple network combinations, and morereliableupstream transmission; the hardware integrates 2 DI, 2 DO, can achieve industrial field control requirements, and supports Modbus protocol control. It can be widely used in smart breeding, smartfactory and other industrial intelligent solutions
Tính năng
- Multiple networks, Ethernet and WiFi, network is faster and more convenient;
- Support Modbus, Json acquisition and control, flexible protocol selection
- Supports MQTT, TCP Server, and TCP Client links
- Expand the IO function, the host has 2DI, 2DO, supports up to 6 IO expansion modules;
- Support access to the cloud to realize remote management and upgrade
- Small size, support rail installation, hanging ear installation
Thông số kỹ thuật
|
USR-M050 Specifications |
|
Classify |
Parameter |
Describe |
|
Power |
voltage |
DC:9~36V |
|
Io |
DI |
The second channel supports the acquisition of switch quantity, with 9-36V as high and 0-2V as low. The filtering time can be adjusted |
|
DO |
2*DO, load 3A-250VAC/28VDC |
|
Physical Specifications |
Size |
80 x 30 x110 (mm) |
|
Weight |
<200g |
|
interface |
Terminal, hole diameter 1.5mm (diameter) |
|
way to install |
Rings or rails |
|
Expand the way |
Slide rail, built-in connector |
|
Hardware Protection |
static electricity |
IEC61000-4-2，Level2，class B |
|
surge |
IEC61000-4-5，Level2，class B |
|
pulse group |
IEC61000-4-4，Level2，class B |
|
Indicator Light |
Supply |
POW, it lights up when powered on and turns off when powered off |
|
Work |
WORK, the equipment works normally, 1s flash once |
|
Network |
NET,No network shutdown；
WiFi: 2.4G Flash twice, and then flash again after 2S；
WiFi: 5G flashes twice, then flashes again after a 2S interval； |
|
DO |
2*DO |
|
DI |
2*DI |
|
Ethernet |
Standard |
1* WAN , 10M/100M，RJ45， MDI/MDIX |
|
Default |
Static IP：192.168.0.7 |
|
DNS server |
The default primary server is 223.5.5.5,
and the default standby DNS server is 8.8.8.8 |
|
Operational Environment |
Working temperature |
-25°C ~ 70°C |
|
Storage temperature |
-40°C ~ 85°C |
|
Working humidity |
5% ~ 95% ，No condensation |
|
Other Features |
Antenna |
SMA-F external screw inner hole |
|
Networking protocol |
ICMP,IPv4,IP,ARP,TCP,UDP,DHCP,DNS,HTTP,MQTT, |
|
Parameter configuration |
Built-in Web |
|
Communication link |
3 routes, 1*TCP +1*MQTT +1*PUSR Cloud,
SSL encryption supported |
|
Protocol conversion |
Modbus RTU/TCP，Json |
|
Time calibration |
Supports NTP, browser time synchronization and manual setting, and supports time zone setting |
Download
USR-M050 Specification
USR-M050 User Manual
Thông tin đặt hàng
| Model |
Ethernet |
Network |
Area |
Band |
| USR-M050-C1 |
√ |
LTE Cat1 |
China |
LTE TDD: Band 34/38/39/40/41LTE FDD: Band 1/3/5/8GSM: 900/1800MHZ |
| USR-M050-ETH |
√ |
- |
Global |
/ |
| USR-M050-EW |
√ |
WiFi 2.4G/5.8G |
Global |
IEEE 802.11a/b/g/n/ac |
