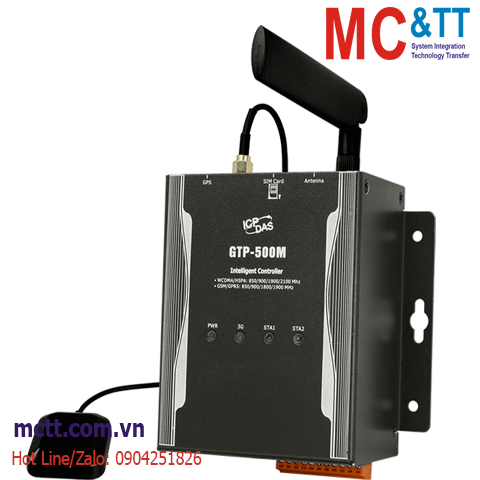

Bộ điều khiển SMS/GPRS/WCDMA (3G) + GPS ICP DAS GTP-500M CR
Feature
- Support WCDMA 850/900/1900/2100 MHz frequency.
- Support GPRS 850/900/1800/1900 MHz frequency.
- Intelligent multiport serial to 2G/3G gateway.
- Intelligent 2G/3G Remote Terminal Unit (RTU).
- Intelligent 2G/3G SMS/Voice alarm controller(SMS).
- 1 x RS-232 port and 1 x RS-485 port for Virtual COM. 1 x Utility port for Configuration.
- Built-in Watch-dog Function.
- Power Reverse Polarity Protection.
- Power supply +10 VDC ~ +30 VDC.
- Support GPS function.
Introduction
GTP-500M is an intelligent Controller with GPS. Within the high performance 32 bit CPU, GTP-500M is suited for the harsh industrial environment. It features 3G module, 1 RS-232, 1 RS-485, SD and one I/O expansion bus interface. It can be used in M2M application fields to transfer GPS and data of Modbus device via WCDMA/GPRS. GTP-500M has three functions for different requirement, including RTU function, RMV function and SMS function. Therefore, GTP-500M is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications.
Application
Specifications
| Software |
| Service |
Virtual COM, RTU, SMS Alarm |
| CPU Module |
| CPU |
ARM Microprocessor |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x PWR
1 x 3G
1 x STA1
1 x STA2
1 x GPS |
| 2G System |
| Data Transmission Rate |
GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band |
850/900/1800/1900 MHz |
| Coding Schemes |
CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot |
GPRS class 12; GPRS station class B |
| Power Class |
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format |
Sending: UCS2
Receiving: UCS2/7bits |
| 3G System |
| Data Transmission Rate |
HSPA
Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps
HSDPA Max. 7.2 Mb/s
WCDMA Max. 384 kb/s Download/Upload link |
| Frequency Band |
WCDMA 850/900/1900/2100 MHz |
| Power Class |
Class 3 (250mW @ WCDMA/HSPA) |
| COM Ports |
| Ports |
1 x RS-232
1 x RS-485 (3000VDC Isolated) |
| Baud Rate |
9600 bps and 115200 bps |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
117 x 137 x 58 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GTP-500M CR |
2G/3G Multi Function Controller with GPS (RoHS) |
