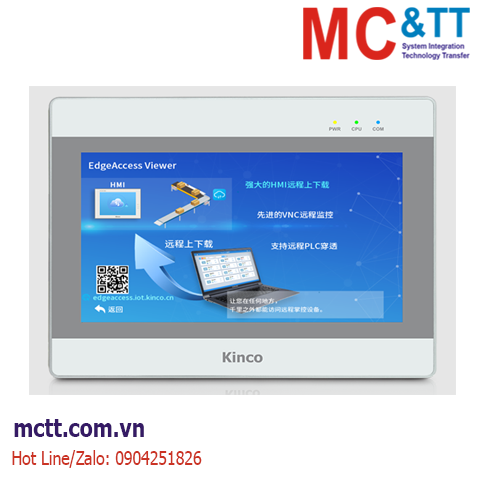

Màn hình cảm ứng HMI 10.1 inch Kinco GT100E2-4G (3 COM, 1 USB Host, 2 Ethernet + 4G)
Tính năng
- 10.1"HD display, 16.77M true color

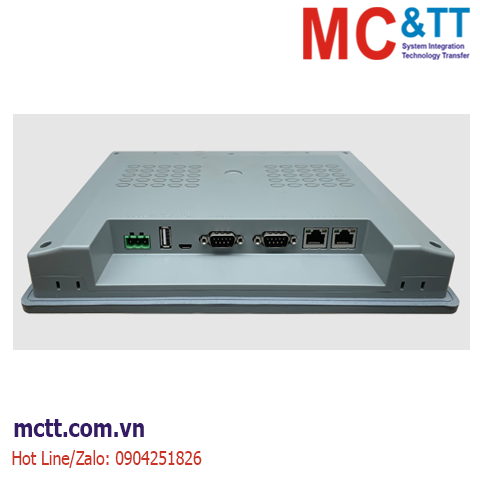

- Dual Ethernet port, 3 separated COM Port
- Mainboard high technology protection
- Built-in power supply isolation, Powerful script function
Thông số kỹ thuật
|
Model |
GT100E2 |
GT100E2-WiFi |
GT100E2-4G |
GT100E2-CAN |
|
Performance specification |
|
Display size |
10.1" TFT |
|
Display area |
222.72(W)x125.28(H) |
|
Resolution |
1024*600 pixels |
|
Display color |
16.7M color |
|
Display angle of view |
70/70/60/60(left/right/up/down) |
|
Contrast ratio |
500:1 |
|
Backlight |
LED |
|
Brightness |
350cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
CPU |
ARM RISC 32Bit 800MHz |
|
Storage |
256MB NAND Flash Memory + 128MB DDR3 Memory |
|
RTC |
Built-in real time clock |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/ Serial port |
| Network access |
Ethernet |
Ethernet, Wi-Fi |
Ethernet, 4G wireless communication |
Ethernet |
| Program download |
USB Slave (Micro USB)/ U disk/ Ethernet |
| Bus port |
None |
1*CANopen |
| Ethernet |
2*10/100M self-adaption |
| Communication port |
COM0: RS232/RS485/RS422, COM1: RS485/RS422, COM2: RS232 |
|
Electrical specification |
|
Input power supply |
DC10.8V~DC28V,Built-in isolation power supply |
|
Rated power |
5W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB coating |
Yes |
|
Shell material |
Engineering plastic |
|
Dimensions(mm) |
271*213*38 mm |
|
Cutout size(mm) |
260*202 |
|
Weight |
1.1 Kg |
|
Environment specification |
|
Operating temperature |
-10～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
| Panel protection grade |
IP65 compliant (4208-93) |
|
CE certification |
CE compliant (EN61000-6-4:2007+A1:2011, EN61000-6-2:2005) |
|
Software |
|
Configuration software |
Kinco DTools V3.5.3 and above |
Thông tin đặt hàng
10.1″TFT, 1024×600, 1677M Colors, 2×Ethernet, 4G wireless communication, 1×Micro USB /USB Host, 3×Serial port
