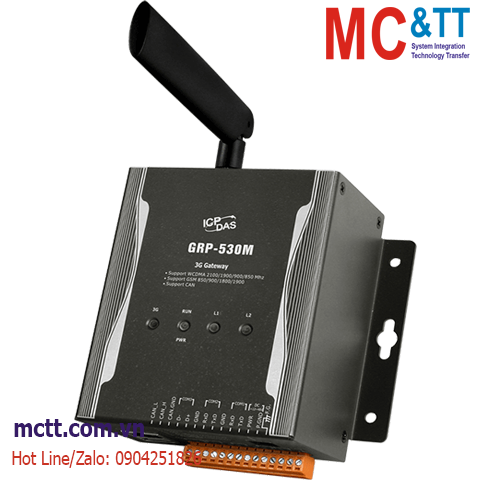

Modem/Router công nghiệp GPRS/WCDMA (3G) + Ethernet/RS-232/485/CAN ICP DAS GRP-530M CR
Feature
- Support WCDMA 850/900/1900/2100 MHz and GSM 850 / 900 / 1800 / 1900 MHz.
- 10/100/1000 Base-TX compatible ethernet eontroller.
- COM port: COM1 (3-wire RS232), COM2 (3-wire RS232), COM3 (RS-485) Support CAN.
- GPS : 32 channels with All-In-View tracking.
- Support Micro SD card.
- Provide 3G Router function.
- Support port mapping function.
- Serial Port to 3G Gateway.
- High reliability in harsh environments.
- DIN-Rail mountable.
Introduction
The GRP-530 design by ICP DAS is a 3G gateway for Ethernet or serial port. With the GPS, the GRP-530 can use as a GPS tracking system. In M2M application fields, use it to transfer the data from remote I/O, Modbus data or video of the camera via 3G/2G. With its high-performance CPU, the GRP-530 Series can handle a large amount of data and are suitable for harsh industrial environments. The GRP-530 Series equipped with the 3G module, Ethernet interface, CAN Bus, and GPS module.
Application
Specifications
| CPU Module |
| CPU |
ARM CPU |
| EEPROM |
16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Flash |
256 MB |
| SRAM |
256 MB |
| Storage Expansion |
SD Card (Max. 32GB SDHC) |
| Real Time Clock |
Provide seconds, minutes, hours, day of week/month, month and year |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x RUN/PWR
1 x 3G
1 x L1
1 x L2 |
| 2G System |
| Data Transmission Rate |
GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band |
850/900/1800/1900 MHz |
| Coding Schemes |
CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot |
GPRS class 12; GPRS station class B |
| Power Class |
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz) |
| 3G System |
| Data Transmission Rate |
WCDMA / HSPA+
Downlink transfer: Max. 14.4 Mbps; Uplink transfer: Max. 5.76 Mbps |
| Frequency Band |
WCDMA 850/900/1900/2100 MHz |
| Power Class |
Class 3 (250mW @ WCDMA/HSPA) |
| GPS/GNSS |
| Protocol |
NMEA 0183 |
| Support Channels |
32 |
| COM Ports |
| Ports |
1 x RS-232 (Console, Debug)
1 x RS-232
1 x RS-485 (3000VDC Isolated) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| CAN |
| Signal Line |
CAN Bus (CAN_H, CAN_L) |
| Power |
| Consumption |
4.8W ( 200 mA @ 24 VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
117 x 126 x 58 (W x L x H) |
| Installation |
DIN-Rail / Screw |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GRP-530M CR |
Ethernet/Serial/CAN to 2G/3G Gateway (RoHS) |
