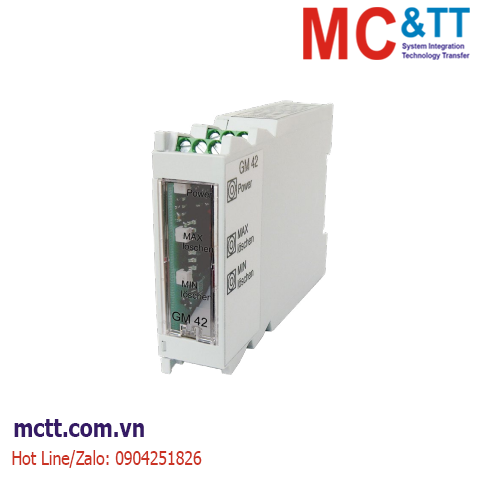

Minimum and Maximum Value Memory Device Lorenz GM42-MAX
The GM42-MAX is a fast minimum and maximum memory device with a 0 ... ±10V input universally applicable.
The narrow shape of the housing allows space-saving mounting in switch cabinets on standardized DIN mounting rails.
A galvanically separated supply voltage range of 10 ... 30V and the min. - max. values of 0 ... ±10V allow the direct signal processing with a PLC control.
Reset input: (delete)
One each for min. and max. Both are galvanically separated by opto couplers. Two LED status displays are on the front.
Maximum Memory Device:
After a reset (control input) to -10V each most positive value is saved and transferred to the output.
Minimum Memory Device:
After a reset (control input) to +10V each most negative value is saved and transferred to the output.
The status indications are protected behind a transparent acrylic glass panel.
| Type: |
GM42-MAX |
| Technical Details: |
Minimum and Maximum Value Memory Device for DIN Mounting Rails, with 0..±10V Input Universally Applicable. |
| PDF Datasheet: |
081005_GM42-MAX_en.pdf |
| PDF Operation Manual: |
090215d_GM42_en.pdf |
