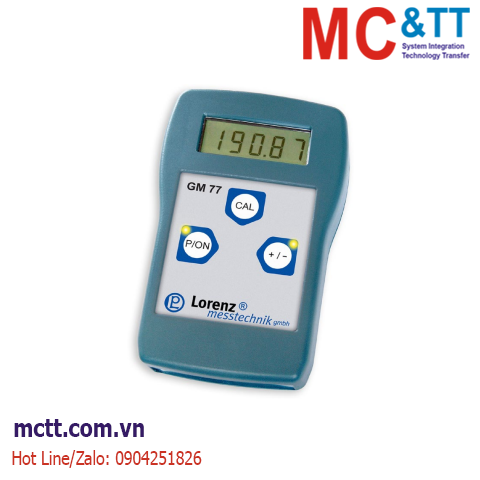

Bộ hiển thị cầm tay cho cảm biến đo Momen, Lực, Load Cell, Strain Gauge Lorenz GM77
The GM77 is a cost-effective hand-held measuring instrument with a 4½-digit, freely scalable LCD display for strain gauge (SG) signals of 0.35 to 3.5 mV/V.
The compact hand-held measuring instrument is flexibly applicable. Selectively, it can be used with commercial, external accessible batteries, accumulators or a plug power-pack with integrated accumulator charging function.
The battery saving mode with a 15 min timer switches the instrument off automatically.
By a key, an integrated maximum value memory and a signal inverse function are connectable and disconnectable at any time; the status is indicated on the keys by LEDs.
Another key applies 100 % calibration control (if available - see sensor data sheet) of the sensor, thus the GM77 can easily be calibrated to a sensor and the calibration can be checked at any time.
- Display and decimal point freely scalable
- Mains-, battery-, accumulator-operation
- Cut-off after 15 min
- Calibration control switch
- Maximum value memory
- Signal conversion switch
- Integrated accumulator charger
- 4½-digit LCD-display
- Easiest calibration
| Type: |
GM77 |
| Technical Details: |
DC Voltage Measuring Amplifier for Strain Gauge Sensors, Mains-Independent, a 4½ Digit LCD-Display, Calibration Control Switch, Maximum Value Memory .... |
Suitable Connection Cable
(PDF Datasheet): |
Connection cable for passive sensors, 3 m, with 5-pin female cable connector and 15‑pin D‑SUB- male cable connector
Connection cable for passive sensors, 3 m, with 7-pin female cable connector and 15‑pin D‑SUB- male cable connector
Connection cable for passive sensors, 3 m, with 6-pin female cable connector and 15‑pin D‑SUB- male cable connector
Connection cable for passive sensors, 3 m, with 12-pin female cable connector and 15‑pin D‑SUB- male cable connector |
| PDF Datasheet: |
081031_GM77_en.pdf |
| PDF Operation Manual: |
090188g_GM77_en.pdf |
