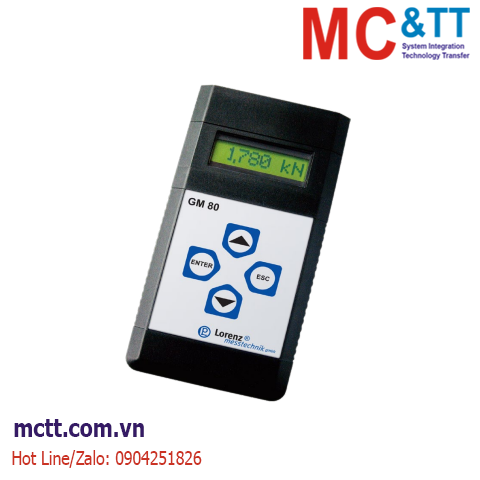

Bộ hiển thị cầm tay và lưu trữ dữ liệu (Datalogger) cho cảm biến đo Momen, Lực, Load Cell, Strain Gauge Lorenz GM80

Bộ hiển thị cầm tay và lưu trữ dữ liệu (Datalogger) cho cảm biến đo Momen, Lực, Load Cell, Strain Gauge Lorenz GM80

The measuring amplifier can process sensor strain gauge (SG) signals of ±3.3 mV/V and active signals of ±10V and 0/4 ... 20 mA.

The measuring amplifier can be used mobile by battery or accumulator operation, but can also be supplied with an external main adapter.

A high measuring accuracy combined with fast measuring rates is ensured by the employment of highly precise amplifiers and components, 16 bit A/D converters and a fast microcontroller.

A versatile configurable data logger stores a series of measurements with date and up to 15288 measured values.

Measured values or logging values can be expelled to a computer or printer via the USB or RS232 interface.

Ten parameter sets are available for sensors. Therein, in each case, the calibration data, the sensor designation and physical unit are deposited.

Functions such as tare, fetch min./max. and delete min./max. are available during the measurement.

The data logger or the interface can be controlled externally via an additional trigger input.
At low measuring rates, the strain gauge supply is clocked power-saving. If the GM80 is not in measuring mode, the device shuts off after three minutes.

• Data logger up to 15000 measured values
• Trigger input for external control
• For active or passive sensors
• Fast measurement up to 1000/s
• Mains, battery and accumulator operations
• Display of the physical unit
• 10 sensor parameter sets
• RS232 interface
• Min./max. storage
• USB interface
