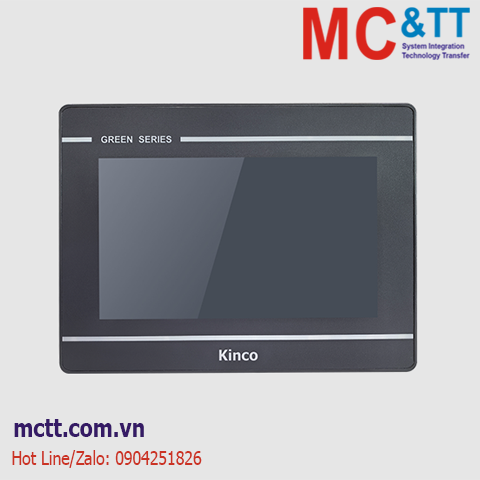

Màn hình cảm ứng HMI 10.1 inch Kinco GL2101E (3 COM, 1 USB Host, 1 USB Slave (Type-C), Ethernet)
Tính năng
- 10.1-inch 1024*600 high-definition display with 16.2 million true colors
- 85/85/85/85 wide viewing angle display.
- Dual-core CPU with 256MB memory and 4GB flash storage.
- Single Ethernet port plus three serial ports,supporting dual RS485 applications.

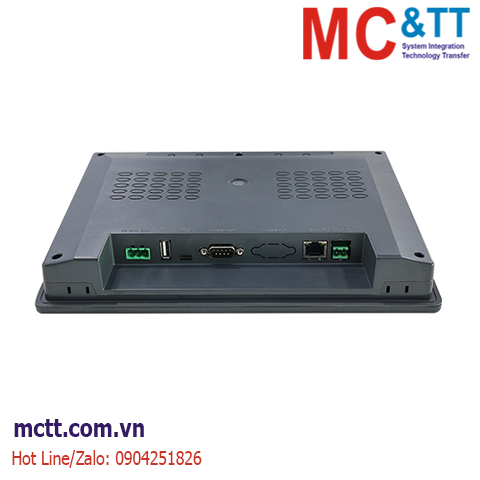

- Bottom cable exit design,saving back space
- Multiple networking options, Ethernet/Wi-Fi/4G to choose from freely.
- Based on the latest EdgeAccess 2.0 version, enjoy seamless loT
- Based on the latest Kinco DToolsPro configuration software.
Thông số kỹ thuật
|
Performance specification |
| Model |
GL2101E |
GL2101E-WIFI |
GL2101E-4G |
|
Display size |
10.1" TFT |
|
Display area |
222.72(H)×125.28(V) |
|
Resolution |
1024*600px |
|
Display color |
16.2M true color |
|
Display angle of view |
85/85/85/85(L/R/U/D) |
|
Contrast ratio |
500:1 |
|
Backlight |
LED |
|
Brightness |
300cd/m2 |
|
Backlight life |
30000 hours |
|
Touch Panel |
4 line precision resistance network (surface hardness 4H) |
|
CPU |
ARMCort ex-A7DualCore 1GHz |
|
Memory |
4GB eMMC + 256MB Memory |
|
RTC |
Built-in |
|
Extensible memory |
1 USB Host, 1 USB Slave (Type-C) |
|
Printer port |
USB Host/Serial port |
| Program download |
USB Slave (Type-C)/ U disk/ Ethernet port |
| Ethernet |
10/100 Mbps |
| Network access |
Ethernet |
Ethernet/WIFI |
Ethernet/4G |
| Wi-Fi/wireless network band |
None |
IEEE802.11 b/g/n
802.11b:max 17dBm
802.11g:max 17dBm
802.11n:max 17dBm |
LTE-FDD band 1/3/5/8
LTE-TDD band 38/39/40/41
UMTS band 1/8
GSM band 3/8 |
| VPN |
Support HMI remote upload, download and screen monitoring, support PLC transparent transmission program upload, download and monitoring |
| Communication port |
COM0:RS232/RS485/RS422; ;COM1:RS485; COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC10.8V～DC28V |
|
Rated power |
6W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB |
None |
|
Shell material |
Engineering plastic |
|
Shape size(mm) |
271*213*38mm |
|
Cutout size(mm) |
260*202mm |
|
Weight |
1.1 Kg |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
Conforming to IP65 certification (4208一93) |
|
CE certification |
EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools Pro V1.7.5 or above |
