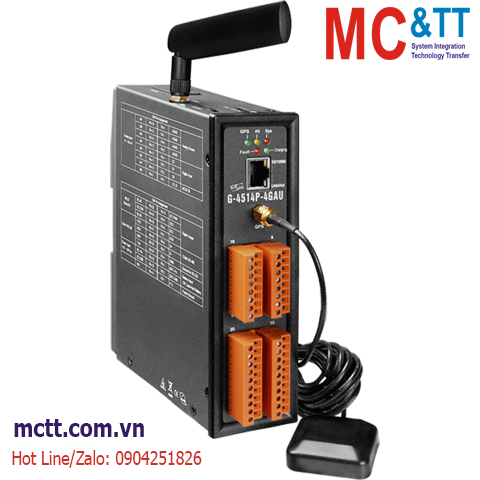

Bộ lập trình nhúng MiniOS7 PAC + LTE (4G) + GPS ICP DAS G-4514P-4GAU CR

Mã sản phẩm: G-4514P-4GAU

Thương hiệu: ICP DAS

Tình trạng:

4G Power Saving PAC with Solar charger and GPS(Asia Only, Except China)

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Bộ lập trình nhúng MiniOS7 PAC + LTE (4G) + GPS ICP DAS G-4514P-4GAU CR

Features

Embedded MiniOS7, anti-virus
Support GSM,WCDMA,4G LTE
Solar charger for Lead acid battery
10/100 Base-TX compatible Ethernet controller
COM port: COM1 (5-wire RS232), COM2 (RS-485)
I/O: 3 DI, 3 DO, 8 AI, 1 relay DO
Support SD card.
Built-in RTC, NVRAM, EEPROM
128*64 dots LCM display (option)
GPS : 32 channels with All-In-View tracking (option)
Support TCP ,UDP client connection over 4G LTE
High reliability in harsh environments
DIN-Rail mountable

Introduction

The G-4514 series are M2M (Machine to Machine) Power Saving PAC with a cellular transceiver and a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. With optional GPS model, the G-4514 can also be a GPS tracking system for vehicle management or maritime system. The features of G-4514-4G series: Solar charger, 4G module, Ethernet interface, optional GPS module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.

Application

Hydrologic / Wind Monitoring Application.

Car Monitor / Tracking System.

https://mctt.vn/g-4500-icp-das

Specifications

CPU Module
CPU	80 MHz internal microprocessor
EEPROM	16 KB, retention > 40 years. 1,000,000 erase/write cycles
Flash	Real time clock, watchdog timertimer
NVRAM	31 bytes, battery backup, data valid up to 10 years
SRAM	512K/512K

Lead Acid Battery Charger
Battery Voltage	12V Lead-Acid Battery
Charging Voltage	Voltage of Power Input must be over +16V
Low Voltage Protect	Low Voltage disconnect = 11.1V / Low Voltage reconnect = 12.6V

LED Indicators
Status	1 x System 1 x 3G 1 x GPS 1 x Charging / Fault

2G System
Data Transmission Rate	GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps
Frequency Band	850/900/1800/1900 MHz
Coding Schemes	CS 1, CS 2,CS 3,CS 4
GPRS Multi-slot	GPRS class 10/8; GPRS station class B
Power Class	Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz)
SMS Format	Sending: UCS2/7bits Receiving: UCS2/7bits

3G System
Data Transmission Rate	DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band	WCDMA 850/900/1900/2100 MHz
Power Class	Class 3 (24dBm+1/-3dB) for WCDMA
SMS Mode	MT, MO, CB, Text and PDU mode

4G System
Data Transmission Rate	LTE Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps
Frequency Band	FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE: B40

GPS/GNSS
Acquisition Time	Hot start (Open Sky) = 2 s(typical) Cold start (Open Sky) = 36 s(typical)
Protocol	NMEA 0183 version 3.01
Sensitivity	Tracking = up to -159 dBm (with external LNA) Cold start = up to -146 dBm (with external LNA)
Support Channels	32

Analog Input
Channels	8
Type	Current
Range	0 ~ 20 mA
Resolution	12 - bit
Accuracy	+/- 2 LSB (+/- 0.0097 mA)
Sampling Rate	1 KHz max. (Read one channel).
Isolation	2500Vrms 3000Dc to DC

Digital Input
Channels	3
Type	Dry Contact
ON Voltage Level	Close to GND
OFF Voltage Level	Open
Isolation	Non-isolated

Digital Output
Channels	3
Type	Open Collector
Sink/Source (NPN/PNP)	Sink (NPN)
Load Voltage	+30 VDC max.
Load Current	100 mA max.
Isolation	Non-isolated

Relay Output
Channels	1
Contact Rating	Form C: 2A @ 30 VDC 0.25 A @ 250 VAC
Mechanical Endurance	typ. 10^8 operations

COM Ports
Ports	1 x RS-232 1 x RS-485

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)

Power
Consumption	Deep Sleep: < 10 mA @ 12VDC; Deep Sleep(With LCD): < 11 mA @ 12VDC; Sleep: < 15 mA@12VDC; Idle: 90 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC
