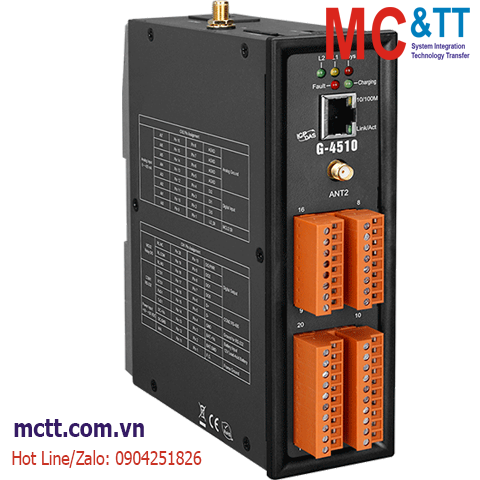

Bộ lập trình nhúng MiniOS7 PAC + LTE (4G)/NB + GPS ICP DAS G-4510 CR
Features
- Embedded MiniOS7, anti-virus
- Solar charger for Lead acid battery
- 4G Modem: EC21-AU (option), EC25-E (option)
- NB Modem: BG96 (option)
- 10/100 Base-TX compatible Ethernet controller
- COM port: COM1 (5-wire RS232), COM2 (RS-485)
- I/O: 3 DI, 3 DO, 8 AI, 1 relay DO
- Support SD card
- Built-in RTC, NVRAM, EEPROM
- 128*64 dots LCM display (option)
- GPS : 32 channels with All-In-View tracking (option)
- Support TCP ,UDP client connection over 4G LTE
- High reliability in harsh environments
- DIN-Rail mountable
Introduction
The G-4510 series are M2M (Machine to Machine) Power Saving PAC with a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. G-4510 can be used for wireless data transmission and other functions through its optional 4G / NB communication module. With optional GPS model , the G-4510 can also be a GPS tracking system for vehicle management or maritime system. The features of G-4510 series: Solar charger, Ethernet interface, optional GPS module, optional 4G/NB communication module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.
Application
- Car Monitor / Tracking System.
https://mctt.vn/g-4500-icp-das
Specifications
| CPU Module |
| CPU |
80 MHz internal microprocessor |
| EEPROM |
16 KB, retention > 40 years. 1,000,000 erase/write cycles |
| Flash |
Real time clock, watchdog timertimer |
| NVRAM |
31 bytes, battery backup, data valid up to 10 years |
| SRAM |
512K/512K |
| Lead Acid Battery Charger |
| Battery Voltage |
12V Lead-Acid Battery |
| Charging Voltage |
Voltage of Power Input must be over +16V |
| Low Voltage Protect |
Low Voltage disconnect = 11.1V / Low Voltage reconnect = 12.6V |
| LED Indicators |
| Status |
1 x System
1 x GPS
1 x 3G
1 x Charging / Fault |
| Analog Input |
| Channels |
8 |
| Type |
Current |
| Range |
0 ~ 20 mA |
| Resolution |
12 - bit |
| Accuracy |
+/- 2 LSB (+/- 0.0097 mA) |
| Sampling Rate |
1 KHz max. (Read one channel). |
| Isolation |
2500Vrms 3000Dc to DC |
| Digital Input |
| Channels |
3 |
| Type |
Dry Contact |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Isolation |
Non-isolated |
| Digital Output |
| Channels |
3 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink(NPN) |
| Load Voltage |
+30 VDC max. |
| Load Current |
100 mA max. |
| Isolation |
Non-isolated |
| Relay Output |
| Channels |
1 |
| Contact Rating |
Form C:
2A @ 30 VDC
0.25 A @ 250 VAC |
| Mechanical Endurance |
typ. 10^8 operations |
| COM Ports |
| Ports |
1 x RS-232
1 x RS-485 |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| Power |
| Consumption |
Deep Sleep: < 10 mA @ 12VDC;
Deep Sleep(With LCD): < 11 mA @ 12VDC;
Sleep: < 15 mA@12VDC;
Idle: 90 mA @ 24 VDC;
Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
47 x 142 x 168 (W x L x H) |
| Installation |
DIN-Rall and Wall mount |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5~90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| G-4510 CR |
Power Saving PAC with Solar charger (RoHS) |
