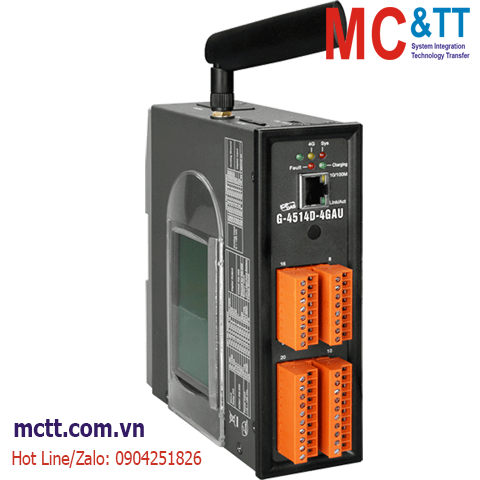

Bộ lập trình nhúng MiniOS7 PAC + LTE (4G) ICP DAS G-4514D-4GAU CR

Features

  • Embedded MiniOS7, anti-virus
  • Support GSM,WCDMA,4G LTE
  • Solar charger for Lead acid battery
  • 10/100 Base-TX compatible Ethernet controller
  • COM port: COM1 (5-wire RS232), COM2 (RS-485)
  • I/O: 3 DI, 3 DO, 8 AI, 1 relay DO
  • Support SD card.
  • Built-in RTC, NVRAM, EEPROM
  • 128*64 dots LCM display (option)
  • GPS : 32 channels with All-In-View tracking (option)
  • Support TCP ,UDP client connection over 4G LTE
  • High reliability in harsh environments
  • DIN-Rail mountable

Introduction

The G-4514 series are M2M (Machine to Machine) Power Saving PAC with a cellular transceiver and a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. With optional GPS model, the G-4514 can also be a GPS tracking system for vehicle management or maritime system. The features of G-4514-4G series: Solar charger, 4G module, Ethernet interface, optional GPS module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.

Application

  • Hydrologic / Wind Monitoring Application.

  • Car Monitor / Tracking System.

https://mctt.vn/g-4500-icp-das

Specifications

CPU Module
CPU 80 MHz internal microprocessor
EEPROM 16 KB, retention > 40 years. 1,000,000 erase/write cycles
Flash Real time clock, watchdog timertimer
NVRAM 31 bytes, battery backup, data valid up to 10 years
SRAM 512K/512K
Display
Backlight Life Expected life is more than 100,000 hours under normal operation
Active Display Area (mm) 80.61 mm x 14.37 mm (W x H)
Lead Acid Battery Charger
Battery Voltage 12V Lead-Acid Battery
Charging Voltage Voltage of Power Input must be over +16V
Low Voltage Protect Low Voltage disconnect = 11.1V / Low Voltage reconnect = 12.6V
LED Indicators
Status 1 x System
1 x 3G
1 x Charging / Fault
2G System
Data Transmission Rate GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps
Frequency Band 850/900/1800/1900 MHz
Coding Schemes CS 1, CS 2,CS 3,CS 4
GPRS Multi-slot GPRS class 10/8; GPRS station class B
Power Class Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz)
SMS Format Sending: UCS2/7bits
Receiving: UCS2/7bits
3G System
Data Transmission Rate DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band WCDMA 850/900/1900/2100 MHz
Power Class Class 3 (24dBm+1/-3dB) for WCDMA
SMS Mode MT, MO, CB, Text and PDU mode
4G System
Data Transmission Rate LTE
Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps
Frequency Band FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28
TDD LTE: B40
Analog Input
Channels 8
Type Current
Range 0 ~ 20 mA
Resolution 12 - bit
Accuracy +/- 2 LSB (+/- 0.0097 mA)
Sampling Rate 1 KHz max. (Read one channel).
Isolation 2500Vrms 3000Dc to DC
Digital Input
Channels 3
Type Dry Contact
ON Voltage Level Close to GND
OFF Voltage Level Open
Isolation Non-isolated
Digital Output
Channels 3
Type Open Collector
Sink/Source (NPN/PNP) Sink (NPN)
Load Voltage +30 VDC max.
Load Current 100 mA max.
Isolation Non-isolated
Relay Output
Channels 1
Contact Rating Form C:
2A @ 30 VDC
0.25 A @ 250 VAC
Mechanical Endurance typ. 10^8 operations
COM Ports
Ports 1 x RS-232
1 x RS-485
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
Power
Consumption Deep Sleep: < 10 mA @ 12VDC;
Deep Sleep(With LCD): < 11 mA @ 12VDC;
Sleep: < 15 mA@12VDC;
Idle: 90 mA @ 24 VDC;
Data Link: 150 ~ 400 mA (peak) @ 24 VDC
Mechanical
Casing Metal
Dimensions (mm) 47 x 142 x 168 (W x L x H)
Panel Cut-Out (mm) 93 mm x 70 mm x 1.6 mm (W x H x T)
Installation DIN-Rall and Wall mount
Environment
Operating Temperature -15 ~ +55 °C
Storage Temperature -20 ~ +70 °C
Humidity 5~90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

G-4514D-4GAU     CR  4G Power Saving PAC with Solar charger and LCD display (RoHS) (Asia Only, Except China)
