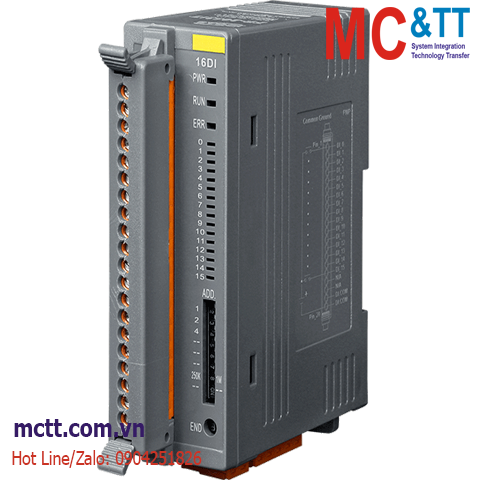

Module FRnet 16 kênh DI ICP DAS FR-2053iT CR

Feature

• Built-in Wire-saving FRnet DI/DO control
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
• DIN-Rail mountable

Introduction

The FR-2053iT has 16-channel isolated Sink/Source input, while the FR-2057iT has 16-channel isolated sink output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053iT/2057iT; refer to literature related to I-7188EF, I-8172W, FRB-100/200/200U.

Application

Specifications

Isolation
Intra-module Isolation 3000 Vrms
EMS Protection
EFT (IEC 61000-4-4) Yes
ESD (IEC 61000-4-2) Yes
Surge (IEC 61000-4-5) Yes
LED Indicators
Status Power, Communication Run, Communication Error, Terminal Resistor, Digital Input
Digital Input
Channels 16
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source (NPN/PNP)
ON Voltage Level +19 ~ +30 VDC
OFF Voltage Level +11 VDC Max.
Isolation 3750 Vrms
Input Impedance 3.25 KΩ, 0.25 W
FRnet
Wire Cable Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed
Transfer Speed 250 kbps and 1Mbps (Default)
DIP Switch Settings
Transfer Distance Max. 400 m for speed 250 kbps
Max. 100 m for speed 1M (Default)
Cyclic Time 2.88 ms for speed 250 K
0.72 ms for speed 1M (Default)
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC (Isolation)
Consumption 2.4 W Max.
Mechanical
Casing Plastic
Dimensions (mm) 33 x 102 x 107 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +85 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

FR-2053iT     CR  FRnet I/O Module with 16-channel Isolated DI (19~30VDC) and Isolated Communication Line (RoHS)
