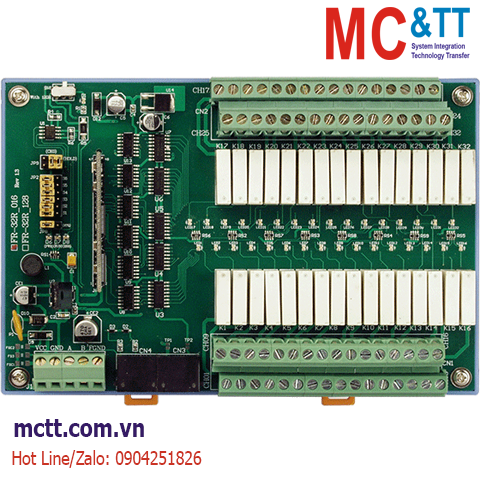

Module FRnet 32 kênh Power Relay ICP DAS FR-32R/DIN CR

Chia sẻ:
Mã sản phẩm: FR-32R/DIN
Thương hiệu: ICP DAS
Tình trạng:

FRnet I/O Module with 32-channel Relay

Liên hệ
Mô tả

Module FRnet 32 kênh Power Relay ICP DAS FR-32R/DIN CR

Feature

• Built-in FRnet interface
• Real I/O synchronization
• Innovative token-stream technology
• Support Broadcasting
• Real Deterministic Control
• Fixed Scan time: 256 points @ 2.88 ms
• Each bank consists of 8 input channels and has its own ground reference
• ASIC design without CPU
• Memory-map I/O
• No protocol and no software overhead
• Easy Programming and OS-independent
• Din-rail mounting
• Two-Wire Cabling
• Jumper setting
• Interface circuit

Introduction

The FR-32R has 32-channel relay output. Not like traditional relay output board, the FR series I/O module has an FRnet interface.The FR I/O module can be used as a distributed remote I/O module or a MagicWire module.The user should select the correct setting when using these modules. Refer to jumper setting. The user can daisy several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, μPAC and PLC easily. Further information about the networking of FR-32R; refer to related literatures of I-8172W, FRB-100U/200U.

Application

• Factory Automation
• Building automation
• Energy management
• Agriculture automation

Specifications

Relay Output
Channels 32
Type Power Relay
Contact Rating Form A: 3 A/125 VDC, 3 A/270 VAC
Release Time Form A: 5 ms
Mechanical Endurance Form A: 20,000,000 ops. at no load.
FRnet
Transfer Speed 250 kbps
Transfer Distance 400 m Max.
Power
Input Range +10 ~ +30 VDC (Non-isolation)
Consumption 24 V @ 240 mA (Max.)
Mechanical
Dimensions (mm) 173 x 117 x 43 (W x L x D)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +85 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

FR-32R/DIN  FRnet I/O Module with 32-channel Relay
