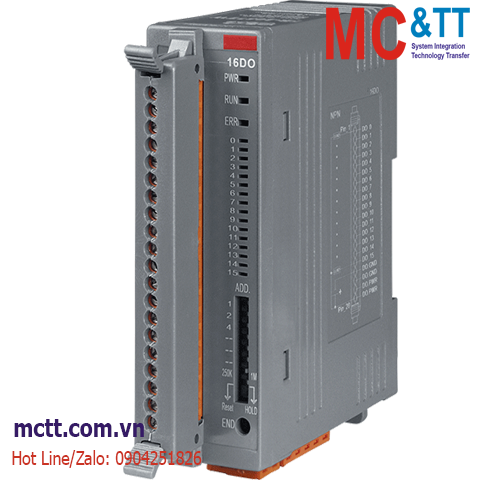

Module FRnet 16 kênh DO ICP DAS FR-2057iTW CR
Feature
• Built-in Wire-saving FRnet DI/DO control
• High-speed transmission reliability
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
• DIN-Rail mountable
Introduction
The FR-2053iTA has 16-channel isolated Sink/Source input, while the FR-2057iTW has 16-channel isolated sink output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053iTA/2057iTW; refer to literature related to I-7188EF, I-8172, FRB-100/200/200U.
Application
Specifications
| Isolation |
| Intra-module Isolation |
3750 Vrms |
| EMS Protection |
| EFT (IEC 61000-4-4) |
Yes |
| ESD (IEC 61000-4-2) |
Yes |
| Surge (IEC 61000-4-5) |
Yes |
| LED Indicators |
| Status |
Power, Communication Run, Communication Error, Terminal Resistor, Digital Output |
| Digital Output |
| Channels |
16 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink (NPN) |
| Load Voltage |
30 VDC Max. |
| Load Current |
250 mA Max. |
| Isolation |
3750 Vrms |
| FRnet |
| Wire Cable |
Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed |
| Transfer Speed |
250 kbps and 1 Mbps (Default)
DIP Switch Settings |
| Transfer Distance |
Max. 400 m for speed 250 kbps
Max. 100 m for speed 1Mbps (Default) |
| Cyclic Time |
2.88 ms for speed 250 kbps
0.72 ms for speed 1 Mbps (Default) |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC (Isolation) |
| Consumption |
2.4 W Max. |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 102 x 110 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| FR-2057iTW CR |
FRnet I/O Module with 16-channel Isolated High Current DO (Sink, NPN, 30VDC, 250mA, Max) and Isolated Communication Line (RoHS) |
