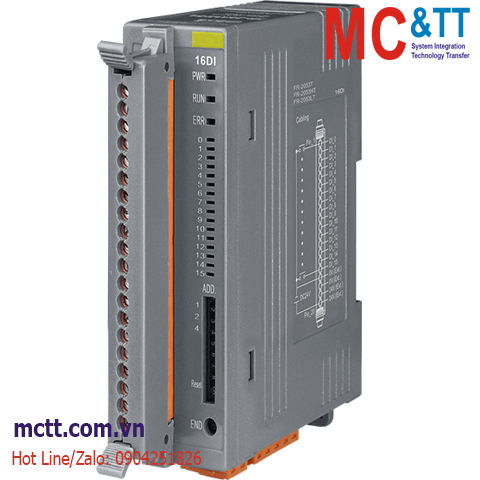

Module FRnet 16 kênh DI ICP DAS FR-2053HT CR

FR-2053HT đã dừng và thay thế bằng FR-2053iT

Feature

• Built-in Wire-saving FRnet DI/DO control
• High-speed transmission reliability
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
• DIN-Rail mountable

Introduction

The FR-2053T/2053HT has 16-channel isolated photo coupler input, while the FR-2057 has 16-channel isolated photo-coupler output. The default signal connector of FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2057; refer to literature related to I-8172W, FRB-100/200U.

Application

Specifications

EMS Protection
ESD (IEC 61000-4-2) Yes
LED Indicators
Status Power, Communication Run, Communication Error, Terminal Resistor, Digital Input
Digital Input
Channels 16
Type Wet Contact
Sink/Source (NPN/PNP) Sink (NPN)
ON Voltage Level +20 ~ 24 VDC
OFF Voltage Level +3 VDC Max.
Isolation 1500 Vrms
Input Impedance 4.7 KΩ
FRnet
Wire Cable 2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change
Transfer Speed 250 kbps for FR-2053T
1 Mbps for FR-2053HT
Transfer Distance Max. 100 m
Cyclic Time 0.72 ms
Power
Reverse Polarity Protection Yes
Input Range +10 VDC ~ +24 VDC (Non-isolated)
Consumption 2 W Max.
Mechanical
Casing Plastic
Dimensions (mm) 33 x 102 x 107 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +85 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

FR-2053HT     CR  High-speed FRnet I/O Module with 16-channel Isolated DI (20~24VDC) (1 Mbps, Max. 100m) (RoHS)
