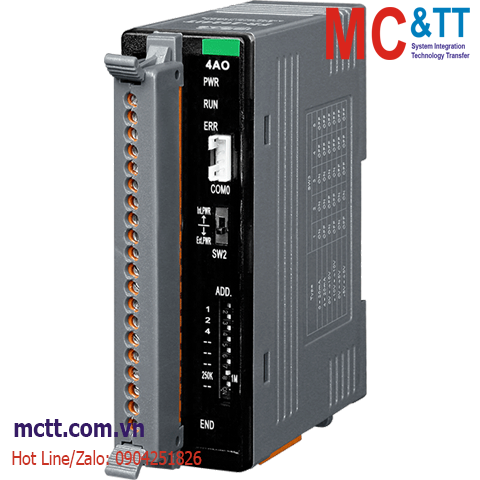

Module FRnet 4 kênh AO ICP DAS FR-2024iT CR

Feature

• Built-in wire-saving FRnet control
• High-speed transmission reliability
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
• DIN-Rail mountable

Introduction

The FR-2024iT is a 12-bit, 4-ch analog outputs module that provides programmable output range (0 ~ + 10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20mA, +4mA ~ +20mA) . There are options for power on value and Safe Value for your consideration. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2017iT/2024iT; refer to literatures related to I-7188EF, I-8172W, and FRB-100/200/200U.

Application

Specifications

Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV contact for power liner
ESD (IEC 61000-4-2) ±4 kV contact for power liner, communication line and each channel
±8 kV air for random point
Surge (IEC 61000-4-5) ± 3 kV for power liner
LED Indicators
Status Power, Communication Run, Communication Error, Terminal Resistor, Analog Output
Analog Output
Channels 4
Type Voltage
Current
Range Current: 0 ~ 20 mA, 4 ~ 20 mA
Voltage: 0 ~ 5V, ±5 V, 0 ~ 10 V, ±10 V
Resolution 12-bit
Accuracy ±0.1% of FSR
Zero Drift Voltage: ±30 μV/ °C
Current: ±0.2 μA/ °C
Span Drift ±20 ppm/°C
DA Output Response Time 10 ms per channel
Programmable Output Slope 0.125 to 2048 mA/second
0.0625 to 1024 V/second
Voltage Output Capability 10 V@20 mA
Current Load Resistance External +24V : 1050 Ω
Power-on Value Yes
Safe Value Yes
FRnet
Wire Cable Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed
Transfer Speed 250 kbps and 1Mbps (Default)
DIP Switch Selectable
Transfer Distance Max. 400 m for speed 250 K
Max. 100 m for speed 1M (Default)
Cyclic Time 2.88 ms for speed 250 K
0.72 ms for speed 1 M (Default)
Power
Input Range +10 VDC ~ +30 VDC (Non-isolated)
Consumption 2.88 W Max.
Mechanical
Casing Plastic
Dimensions (mm) 33 x 102 x 107 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +85 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

FR-2024iT     CR  FRnet I/O Module with 4-channel Isolated AO and Isolated Communication Line (RoHS)
