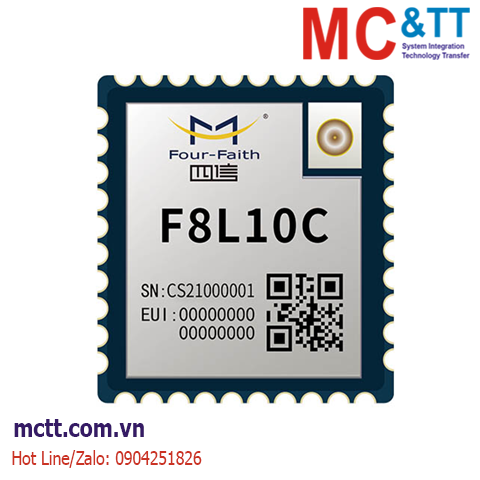

Module LoRaWAN Gateway Four-Faith F8L10C
LoRaWAN Gateway Module F8L10C is an embedded wireless data transfer module based on LoRa SOC technology. LoRaWAN Gateway Module uses the LoRa network to provide users with a wireless data transfer function. The product uses ultra-low power LoRa SOC integrated chips that uses Semtech's advanced low power RF chip and 32-bit RISC MCU which adopts ARM Cortex M4. LoRaWAN Gateway Module support LoRaWAN, proprietary, CLAA, LinkWAN, and other protocols.
Tính năng
- High-performance industrial-grade CPU and wireless module
- Low power consumption
- High receive sensitivity
- DC: 1.7 ~ 3.7V
- Using miniature four sides 1.27mm*10 stamp hole encapsulation
- Support LoRa modulation
- LoRaWAN® 1.0.2, LinkWAN, CLAA protocols
- Reception sensitivity up to -139dBm@125KHz,SF12, CR1
- Support software upgrade by serial port
- Support all ISM bands from 150MHz to 960MHz
- Flexible transmit power up to 22 dBm
Thông số kỹ thuật
| Characteristics |
|
| Items |
Contents |
| Band |
150MHz to 960MHz all ISM bands |
| Theoretical Maximum Transmitting Power |
22dBm |
| Sensitivity |
125kHz Bandwidth, -126dBm@125KHz,SF7，CR1
125kHz Bandwidth, -133dBm@125KHz,SF10，CR1
125kHz Bandwidth, -139dBm@125KHz,SF12，CR1 |
| Sensitivity |
-140dBm@(SF=12, BW=125kHz)
-135dBm@(SF=10, BW=125kHz)
-126dBm@(SF=7, BW=125kHz) |
| Power Supply |
|
| Items |
Contents |
| Standard |
DC3.3V
> 300mA |
| Power Consumption |
|
| Items |
Contents |
| RXD |
<10mA@3.3V DC |
| TXD |
Pout=+22dBm <120mA@3.3V
Pout=+20dBm <113mA@3.3V |
| Timely Wake-up |
<2uA@3.3V DC |
| Deep Sleep |
<2uA@3.3V DC |
| Physical Properties |
|
| Items |
Contents |
| Dimensions |
15x16x2.5mm |
| Weight |
2g |
| Others |
|
| Items |
Contents |
| Operating Temperature |
-40~+85ºC (-40~+185ºF) |
| Storage Temperature |
-40~+125ºC (-40~+257ºF) |
| Relative Humidity |
95% (non-condensing) |
Thông tin đặt hàng
| Products |
Frequency |
Description |
| F8L10C-L |
410-510 MHz |
Non PA, U.FL Port, stamp hole encapsulation |
| F8L10C-L-N |
410-510 MHz |
Non PA, Output Pin, stamp hole encapsulation |
| F8L10C-H |
863-928 MHz |
Non PA, U.FL Port, stamp hole encapsulation |
| F8L10C-H-N |
863-928 MHz |
Non PA, Output Pin, stamp hole encapsulation |
