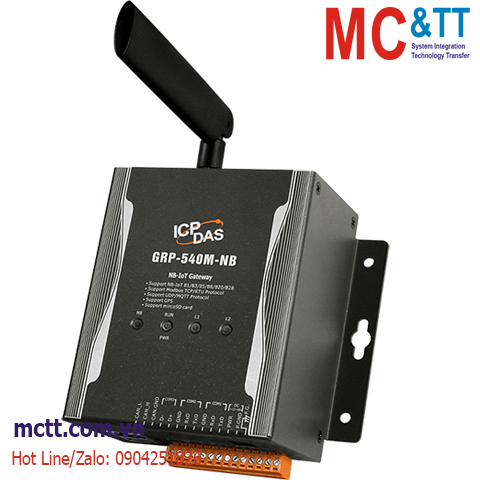

Modem NB-IoT RS-232/485/Ethernet + GPS ICP DAS GRP-540M-NB CR
Feature
- Support NB-IoT.
- 10/100 Base-TX compatible Ethernet controller.
- COM port: COM1 (3-wire RS232), COM2 (3-wire RS232), COM3 (RS-485).
- GPS: 32 channels with All-In-View tracking.
- Support Modbus RTU/TCP.
- Support MQTT.
- Support Micro SD card.
- High reliability in harsh environments.
- DIN-Rail mountable.
Introduction
The GRP-540M-NB provided by ICP DAS is a NB-IoT gateway for Ethernet and serial port. It can be used in M2M application fields to transfer the remote I/O or Modbus data via NB-IoT. Within the high performance CPU, the GRP-540M-NB can handle a large of data and are suited for the hard industrial environment. When connecting with NB-DA Server or MQTT Broker, the user can also control the devices which connected to GRP-540M-NB from the remote control center.
Application
- Data Collection and Remote Control (with NB-DA Server)
- Data Collection and Remote Control (with MQTT Broker)
Specifications
| Software |
| Service |
Web Server, NB-IoT Gateway |
| CPU Module |
| CPU |
ARM CPU |
| EEPROM |
16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Storage Expansion |
SD Card (Max. 32GB SDHC) |
| Real Time Clock |
Provide seconds, minutes, hours, day of week/month, month and year |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x RUN/PWR
1 x NB
1 x L1
1 x L2 |
| 4G System |
| Data Transmission Rate |
NB-IoT
Downlink transfer: Max. 34 Kbps; Uplink transfer: Max. 66 Kbps |
| Frequency Band |
LTE NB-IoT: B1/B3/B5/B8/B20/B28 |
| GPS/GNSS |
| Protocol |
NMEA 0183 |
| Support Channels |
32 |
| COM Ports |
| Ports |
1 x RS-232 (Console, Debug)
1 x RS-232
1 x RS-485 (3000VDC Isolated) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| CAN |
| Signal Line |
CAN Bus (CAN_H, CAN_L) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
117 x 126 x 58 (W x L x H) |
| Installation |
DIN-Rail / Screw |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GRP-540M-NB CR |
Ethernet/Serial to NB-IoT Gateway with GPS (RoHS) (Asia Only) |
