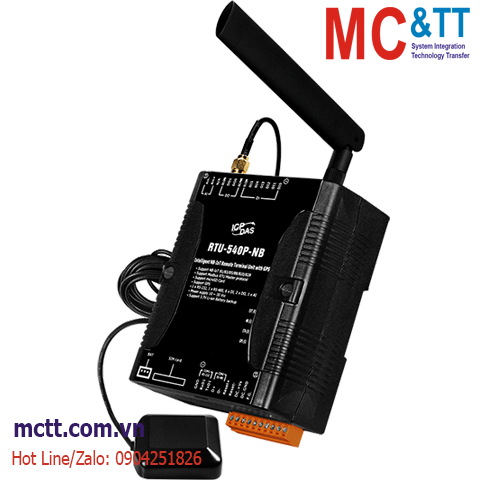

Modem NB-IoT RS-232/485/Ethernet + GPS ICP DAS RTU-540P-NB CR
Feature
- Support LTE NB-IoT B1/B3/B5/B8/B20/B28.
- Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port.
- Support MQTT.
- Support micro SD Card.
- Support GPS function.
- Built-in Watch-dog Function.
- Power Reverse Polarity Protection.
- Support 3.7V Li-ion Battery backup.
- Power supply +10 VDC ~ +30 VDC.
Introduction
RTU-540P-NB is is an intelligent Active LTE NB-IoT Remote Terminal Unit with GPS. Within the high performance 32 bit CPU, RTU-540P-NB is suit for the hard industrial environment. When connecting with NB-DA Server or MQTT Broker, the user can also control the devices which connected to RTU-540P-NB from the remote control center. It features LTE NB-IoT module, 6 digital inputs, 2 digital outputs, 1 analog input, 1 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the local I/O, GPS and Modbus device's data via LTE NB-IoT by the defined period or DI/AI triggers. The local I/O and GPS data can also be stored in the SD card to become a remote data logger. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, RTU-540P-NB is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications.
Application
- Data Collection and Remote Control (with NB-DA Server)
- Data Collection and Remote Control (with MQTT Broker)
Specifications
| Software |
| Service |
NB-IoT Gateway |
| CPU Module |
| CPU |
ARM Microprocessor |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x EXT
1 x NB
1 x STA
1 x GPS |
| 4G System |
| Data Transmission Rate |
NB-IoT
Downlink transfer: Max. 34 Kbps; Uplink transfer: Max. 66 Kbps |
| Frequency Band |
LTE NB-IoT: B1/B3/B5/B8/B20/B28 |
| GPS/GNSS |
| Acquisition Time |
Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 36 s(typical) |
| Protocol |
GPRMC format (NMEA 0183 version 3.01) |
| Sensitivity |
Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA) |
| Support Channels |
32 |
| Analog Input |
| Channels |
1 |
| Type |
Current |
| Range |
0 ~ 20 mA |
| Resolution |
12 bit |
| Digital Input |
| Channels |
6 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source, Isolated channel with common power or ground |
| ON Voltage Level |
+3.5 ~ 30 VDC |
| OFF Voltage Level |
+1V max. |
| Isolation |
3750Vrms |
| Digital Output |
| Channels |
2 |
| Type |
Open-Collector (100mA@30VDC) |
| Sink/Source (NPN/PNP) |
NPN |
| Load Voltage |
+30 V max |
| Load Current |
100 mA max |
| Isolation |
3750Vrms |
| COM Ports |
| Ports |
1 x RS-232(Use for device configuration and debug)
1 x RS-485 (Use for communication with other devices) |
| Environment |
| Operating Temperature |
-25 ℃ ~ +75 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Humidity |
5~95% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| RTU-540P-NB CR |
NB-IoT Remote Terminal Unit with GPS (RoHS) (Asia Only) |
